Baumer IR30.D24L-N60.IA1E.7BO 11179051
Baumer
$577.00

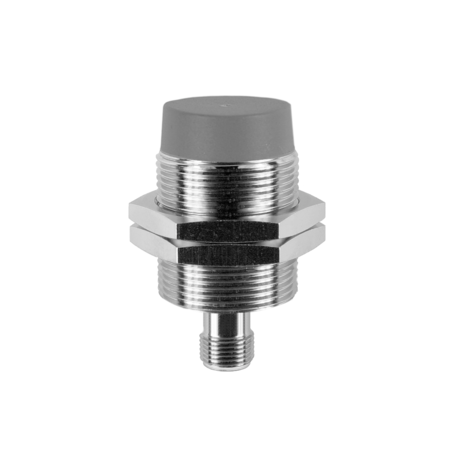

Baumer IR30.D24L-N60.IA1E.7BO 11179051 is a non-flush, cylindrical threaded sensor with a measuring distance of 0 to 24 mm and a sensitivity of 0.67 mA/mm. It features high resolution (< 0.005 mm static, < 0.01 mm dynamic) and repeat accuracy of 0.02 mm. The sensor offers external teach-in adjustment options including 1-point analog, 2-point analog, and factory reset. It has a linearity error of ± 480 µm and temperature drift of ± 6% (Full Scale). The response time is less than 5 ms, and it operates on a voltage supply range of 8 to 36 VDC with a maximum current consumption of 20 mA. The output circuit is analog 4 to 20 mA, and it supports a load resistance of < 50 Ohm/V * Vs - 250 Ohm > 500 Ohm (Vs = 30 to 36 VDC). It includes short circuit and reverse polarity protection. The sensor is made from brass nickel-plated housing and PBT sensing face, measures 30 mm in diameter and 60 mm in housing length, and connects via an M12 connector. It can withstand operating temperatures from -25 to +75 °C and is IP 67 rated for protection.
- Mounting type:
- Non-flush
- Special type:
- Linearized
- Measuring distance Sd:
- 0 24 mm
- Sensitivity:
- 0,67 mA/mm
- Resolution:
- < 0.005 mm (stat.) < 0.01 mm (dynam.)
- Repeat accuracy:
- 0.02 mm
- Adjustment:
- External Teach-in
- Teach:
- 1-point analog, 2-point analog, factory reset
- Linearity error:
- ± 480 µm
- Temperature drift:
- ± 6 % (Full Scale)
- Teach-Feedback:
- LED yellow
- Response time (factory characteristic):
- < 5 ms
- Voltage supply range +Vs:
- 8 36 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- Analog 4 ... 20 mA
- Load resistance:
- < 50 Ohm/V * Vs - 250 Ohm > 500 Ohm (Vs = 30 36 VDC)
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 30 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 100 Nm
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
