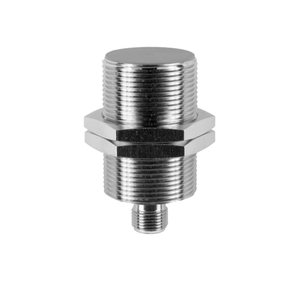

The Baumer IR30.P18S-F45.NV1Z.7BO 11174008 is a flush-mounted, cylindrical threaded proximity sensor with an enhanced distance feature from the GammaProx series. It offers a nominal sensing distance of 18 mm and operates with a temperature drift of ±10%. The sensor has a hysteresis range of 3 to 20% of Sr and includes a three-port LED red output indicator. It is designed to work with various materials, having a correction factor of 100% for mild steel, 70% for stainless steel, and 40% for aluminum. The switching frequency is 500 Hz, and it requires a voltage supply range of 6 to 36 VDC with a maximum current consumption of 10 mA at no load. The output circuit is NPN complementary (NO/NC), and it features a voltage drop of less than 2 VDC with an output current of 200 mA. Safety features include short circuit and reverse polarity protection. The sensor's housing is made of brass nickel-plated, with a PBT sensing face, and it supports a connector M12 connection type. The maximum tightening torque is 140 Nm, and it can operate within a temperature range of -25 to +75 °C. The sensor is IP 67 rated, ensuring protection against dust and immersion in water.
- Mounting type:
- Flush
- Special type:
- Enhanced distance (GammaProx)
- Nominal sensing distance Sn:
- 18 mm
- Temperature drift:
- ± 10 %
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- 3 port LED red
- Correction factor typ.:
- Mild steel 100 %, stainless steel 70 %, aluminum 40 %
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN complementary (NO / NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 30 mm
- Housing length:
- 45 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 140 Nm
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
