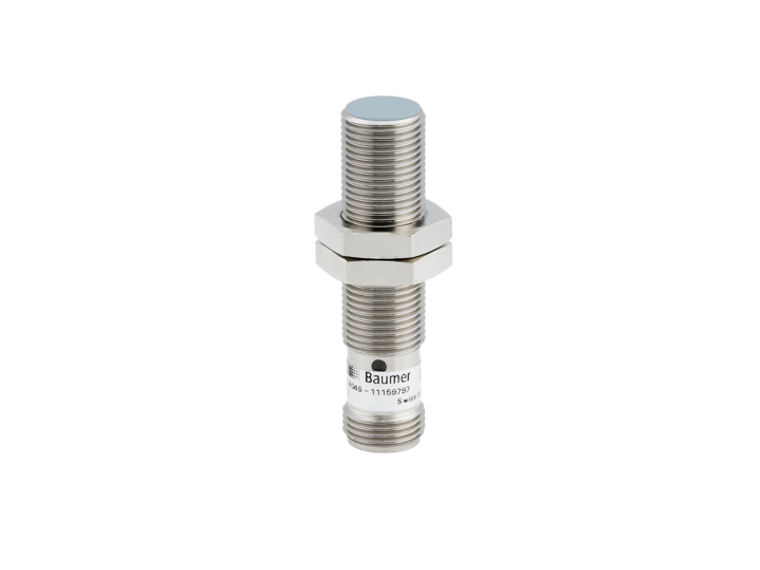

The Baumer IWRM 12U9704/S14 is a quasi-flush mounting inductive sensor designed for precision measurement with a measuring distance of 0 to 4 mm. It offers high resolution, achieving less than 0.001 mm in static and less than 0.005 mm in dynamic conditions, and maintains repeat accuracy of 0.01 mm. The sensor features a linearity error of ±160 µm and is affected minimally by temperature drift, with a variance of ±4% of full scale. It responds swiftly with a response time of less than 2 ms and operates efficiently on a voltage supply range of 15 to 30 VDC, consuming a maximum of 20 mA with no load. The output is an analog 0 to 10 VDC, suitable for loads over 1000 Ohm, and includes safety features such as short circuit and reverse polarity protection. The sensor's cylindrical threaded design is made from brass nickel-plated housing and PBT sensing face, measuring 12 mm in diameter and 50 mm in length. It connects via an M12 connector and can be securely fastened with a maximum tightening torque of 15 Nm. Suitable for operating temperatures ranging from -10 to +70 °C, it is highly durable with an IP 67 protection class, ensuring reliable performance in demanding environments.
- Mounting type:
- Quasi-flush
- Measuring distance Sd:
- 0 4 mm
- Resolution:
- < 0.001 mm (stat.) < 0.005 mm (dynam.)
- Repeat accuracy:
- 0.01 mm
- Linearity error:
- ± 160 µm
- Temperature drift:
- ± 4 % (Full Scale)
- Response time (factory characteristic):
- < 2 ms
- Voltage supply range +Vs:
- 15 30 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- Analog 0 ... 10 VDC
- Load resistance:
- > 1000 Ohm
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 50 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 15 Nm (Front: 10 Nm)
- Operating temperature:
- -10 +70 °C
- Protection class:
- IP 67
