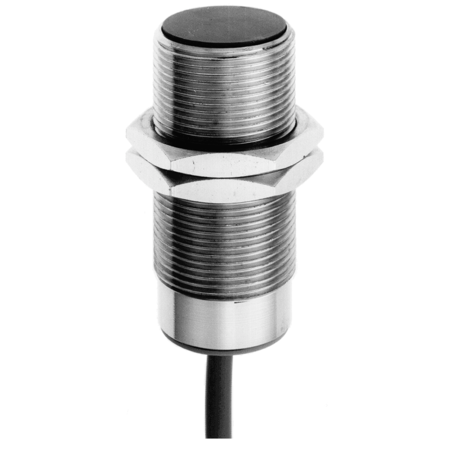

The Baumer IWRM 30I9501 10216777 is a flush-mounted inductive sensor designed for precision distance measurement within a range of 5 to 10 mm. It features a high repeat accuracy of 0.02 mm and a linearity error of ±200 µm. The sensor operates efficiently with a voltage supply range of 15 to 30 VDC and a maximum current consumption of 35 mA. It outputs an analog signal (4 to 20 mA) and supports load resistances between 500 and 1000 Ohm. The device is equipped with short circuit and reverse polarity protection, ensuring durability and reliability. Constructed with a brass nickel-plated housing and a PBT sensing face, it measures 30 mm in diameter and 60 mm in length. The sensor is connected via a 2-meter cable and can withstand operating temperatures from 0 to +60 °C. It is IP 67 certified, indicating a high level of protection against dust and water ingress. Ideal for various industrial applications, the sensor ensures robust performance even in demanding environments.
- Mounting type:
- Flush
- Measuring distance Sd:
- 5 10 mm
- Reference distance:
- 7.1 7.9 mm
- Measuring speed:
- < 1.5 mm / ms
- Repeat accuracy:
- 0.02 mm
- Linearity error:
- ± 200 µm
- Temperature coefficient:
- 1 µm / (K mm)
- Voltage supply range +Vs:
- 15 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- Analog 4 ... 20 mA
- Load resistance +Vs min.:
- < 500 Ohm
- Load resistance +Vs max.:
- < 1000 Ohm
- Residual output ripple:
- < 0.5 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 30 mm
- Housing length:
- 60 mm
- Connection types:
- Cable, L=2 m
- Tightening torque max.:
- 200 Nm (Front: 140 Nm)
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
