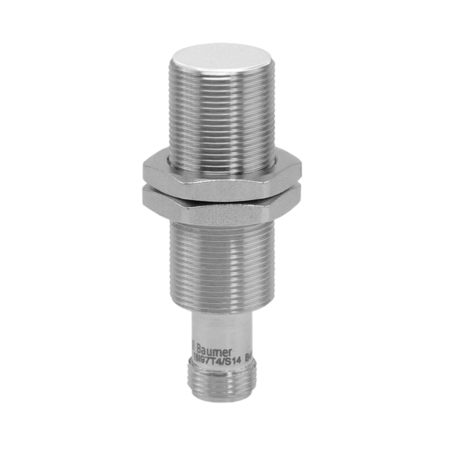

Baumer IWRR 18I97T4/S14 11016445

Baumer IWRR 18I97T4/S14 11016445

Baumer
SKU:
11016445
Availability:
Contact us to confirm availability and lead times.
$1,164.00
Condition:
New
Current Stock:
Description
The Baumer IWRR 18I97T4/S14 11016445 is a robust sensor designed for precise distance measurement in harsh outdoor and washdown environments. It features a quasi-flush mounting and offers a measuring range of 0 to 7 mm with a high resolution of less than 0.005 mm statically and less than 0.01 mm dynamically. The sensor ensures repeat accuracy of 0.015 mm and a linearity error of ±350 µm. It is equipped with a temperature drift of ±10% FS and operates efficiently within a voltage supply range of 15 to 30 VDC. The analog output of 4 to 20 mA is protected against short circuits and reverse polarity. Constructed with a stainless steel housing and an LCP sensing face, it meets IP 68/69K and proTect+ standards, making it suitable for extreme conditions, including temperatures from -40 to +70 °C and temporary cleaning temperatures up to 85 °C. The sensor is also vibration and shock resistant, adhering to EN 61373 and EN 60068 standards. It connects via an M12 connector and is designed for easy integration with a cylindrical threaded design.
Additional Information
Mounting type:
Quasi-flush
Special type:
Outdoor design Washdown design
Measuring distance Sd:
0 … 7 mm
Resolution:
< 0.005 mm (stat.) < 0.01 mm (dynam.)
Repeat accuracy:
0.015 mm
Linearity error:
± 350 µm
Temperature drift:
± 10 % (Full Scale)
Approvals/certificates:
Ecolab
Response time (factory characteristic):
< 2 ms
Voltage supply range +Vs:
15 … 30 VDC
Current consumption max. (no load):
40 mA
Output circuit:
Analog 4 ... 20 mA
Load resistance +Vs min.:
< 330 Ohm
Load resistance +Vs max.:
< 1000 Ohm
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Design:
Cylindrical threaded
Material (sensing face):
LCP
Housing material:
Stainless steel 1.4404 (V4A)
Dimension:
18 mm
Housing length:
60 mm
Connection types:
Connector M12
Tightening torque max.:
55 Nm (Front: 38 Nm)
Operating temperature:
-40 … +70 °C
Cleaning temperature:
70 … +85 °C (30 min/day)
Protection class:
IP 68/69K & proTect+
Vibration resistance:
EN 61373: 2010 (category 3), 5h per axis (14.4 gRMS, 10-500 Hz, EN 60068-2-64)
Shock resistance:
EN 61373: 2010 (category 3), 10 bumps per axis (100 g, 6 ms, EN 60068-2-27)
