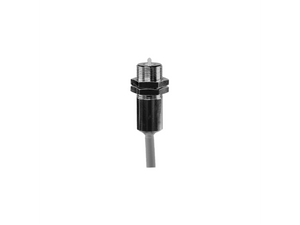

The Baumer MY-COM B100/80 10251047 is a high-precision mechanical contact sensor featuring a repeat accuracy of 0.001 mm and an activating force of 100 cN. It has a mechanical pre-run/overrun of approximately -/1.5 mm and operates with a frontal direction of approach. This sensor supports a maximum DC voltage of 15 VDC with a switching current of up to 2 mA, and a maximum AC voltage of 24 VAC with a switching current of up to 50 mA. The output circuit is a break function (NC) mechanical type. It features a durable zirconium oxide ZrO2 activating pin and a brass nickel-plated housing, measuring 8 mm in diameter and 20 mm in length. The cylindrical threaded design facilitates easy installation, and it connects via an 80 cm cable. Suitable for operating temperatures ranging from -20 to +75 °C, it offers a protection class of IP 50. For more detailed information, refer to the datasheet available [here](https://www.baumer.com/medias/__secure__/My_Com_B100_80_web_EN.pdf?mediaPK=8799734267934).
- Repeat accuracy:
- 0.001 mm
- Activating force:
- 100 cN
- Mech. pre-run / overrun:
- - / 1,5 mm approx.
- Measurement type:
- Contact with medium
- Direction of approach:
- Frontal
- DC voltage max.:
- 15 VDC
- Switch. current DC max.:
- 2 mA
- AC voltage max.:
- 24 VAC
- Switch. current AC max.:
- 50 mA
- Output circuit:
- Break function (NC) mechanical
- Activating pin:
- Zirconium oxide ZrO2
- Housing material:
- Brass nickel plated
- Dimension:
- 8 mm
- Design:
- Cylindrical threaded
- Housing length:
- 20 mm
- Connection types:
- Cable, 80 cm
- Operating temperature:
- -20 +75 °C
- Protection class:
- IP 50
- Datasheet:
- View
