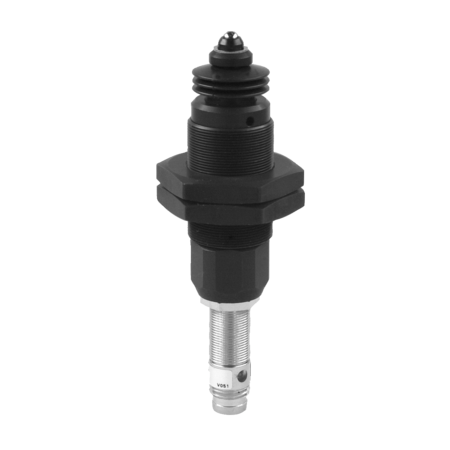

The Baumer MY-COM D250/S35 10238646 is a high-precision mechanical limit switch featuring a repeat accuracy of 0.001 mm and an activating force of 250 cN. It is designed with a mechanical pre-run and overrun of approximately 1 mm each, and can be approached both frontally and laterally. This model operates with a maximum DC voltage of 15 VDC and a maximum AC voltage of 24 VAC, supporting a switching current of up to 2 mA for DC and 50 mA for AC. The output circuit is a break function (NC) with a mechanical design. The activating pin is made from hardened steel, and the housing is crafted from browned brass, ensuring durability. The cylindrical threaded design has a dimension of 16 mm and a housing length of 66 mm. It includes a connector M8 for connections and operates within a temperature range of -20 to +75 °C. The device is protected against the ingress of dust and water with an IP 67 rating. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/My_Com_D250_S35_web_EN.pdf?mediaPK=8799746654238).
- Repeat accuracy:
- 0.001 mm
- Activating force:
- 250 cN
- Mech. pre-run / overrun:
- 1 mm / 1 mm approx.
- Measurement type:
- Contact with medium
- Direction of approach:
- Frontal and lateral approach
- DC voltage max.:
- 15 VDC
- Switch. current DC max.:
- 2 mA
- AC voltage max.:
- 24 VAC
- Switch. current AC max.:
- 50 mA
- Output circuit:
- Break function (NC) mechanical
- Activating pin:
- Hardened steel
- Housing material:
- Browned brass
- Dimension:
- 16 mm
- Design:
- Cylindrical threaded
- Housing length:
- 66 mm
- Connection types:
- Connector M8
- Operating temperature:
- -20 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
