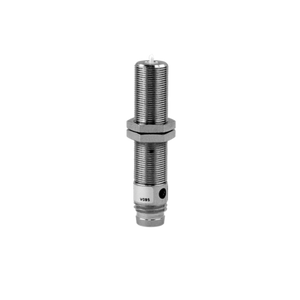

The Baumer MY-COM F75/80 10211605 is a high-precision mechanical contact sensor with a repeat accuracy of 0.001 mm and an activating force of 75 cN. It features a zirconium oxide ZrO2 activating pin and a brass nickel-plated housing, ensuring durability and resistance to wear. The sensor operates with a maximum DC voltage of 15 VDC and an AC voltage of 24 VAC, with respective maximum switching currents of 2 mA and 50 mA. It is designed with a cylindrical threaded body measuring 8 mm in diameter and 28 mm in length, and includes an 80 cm cable for connectivity. Suitable for operating temperatures ranging from -20 to +75 °C, it offers frontal direction of approach and is equipped with a break function (NC) mechanical output circuit. The sensor is rated at IP 50 for protection against dust.
- Repeat accuracy:
- 0.001 mm
- Activating force:
- 75 cN
- Mech. pre-run / overrun:
- - / 1,5 mm approx.
- Measurement type:
- Contact with medium
- Direction of approach:
- Frontal
- DC voltage max.:
- 15 VDC
- Switch. current DC max.:
- 2 mA
- AC voltage max.:
- 24 VAC
- Switch. current AC max.:
- 50 mA
- Output circuit:
- Break function (NC) mechanical
- Activating pin:
- Zirconium oxide ZrO2
- Housing material:
- Brass nickel plated
- Dimension:
- 8 mm
- Design:
- Cylindrical threaded
- Housing length:
- 28 mm
- Connection types:
- Cable, 80 cm
- Operating temperature:
- -20 +75 °C
- Protection class:
- IP 50
- Datasheet:
- View
