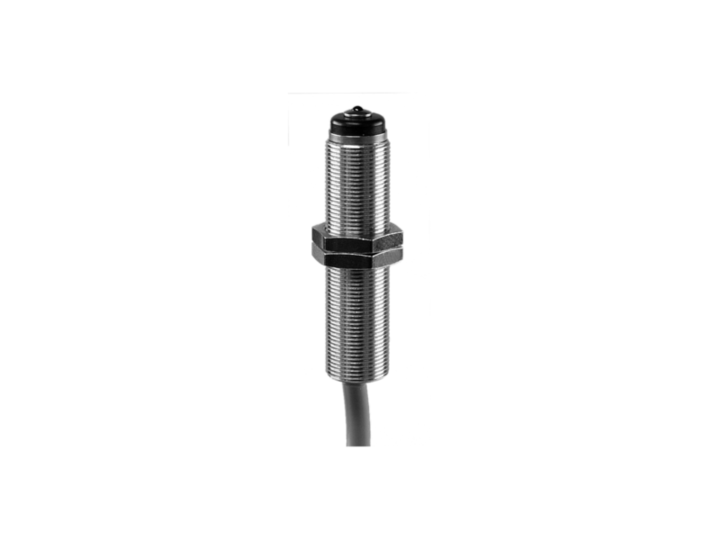

The Baumer MY-COM L75P/200/L 10222699 is a high-precision mechanical contact sensor featuring a repeat accuracy of 0.001 mm and an activating force of 75 cN. It has a mechanical pre-run of approximately 0.6 mm and operates with a frontal approach direction. This sensor includes a red LED output indicator and supports a voltage supply range of 5 to 36 VDC with a maximum load current of 50 mA at 24 VDC. Its output circuit is a PNP make function (NO) and requires a minimum load resistance of 480 Ohm. The activating pin is made of ruby, and the housing is crafted from brass nickel-plated material. The cylindrical threaded design measures 8 mm in diameter and 30 mm in length. It offers a cable connection type with a 2-meter length and operates within a temperature range of -20 to +75 °C. The sensor is IP 67 rated, ensuring protection against dust and immersion. For more detailed information, refer to the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_MY-COM-L75P-200-L_EN_20191010_DS.pdf?mediaPK=8974240120862).
- Repeat accuracy:
- 0.001 mm
- Activating force:
- 75 cN
- Mech. pre-run / overrun:
- - / 0,6 mm approx.
- Measurement type:
- Contact with medium
- Direction of approach:
- Frontal
- Output indicator:
- LED red
- Voltage supply range +Vs:
- 5 36 VDC
- Load current max. at 24 VDC:
- 50 mA
- Output circuit:
- PNP make function (NO)
- Load resistance min.:
- 480 Ohm
- Activating pin:
- Ruby
- Housing material:
- Brass nickel plated
- Dimension:
- 8 mm
- Design:
- Cylindrical threaded
- Housing length:
- 30 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -20 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
