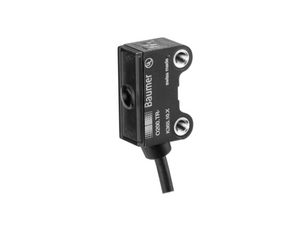

The Baumer O200.EL-NV1T.72NV/FREC_H006 11230163 is a through beam sensor designed for precision detection with a nominal range of 6 meters and an actual range of 5 meters. It features a receiver that operates with a pulsed red laser diode light source. This sensor can reliably detect objects as small as 3 mm, and even 0.5 mm with an aperture. It includes a flashing output indicator for alignment or soiled lens detection, and LED indicators for power status and output. The sensor offers quick response and release times of less than 0.1 ms and 0.12 ms respectively, with minimal jitter. It operates within a voltage supply range of 10 to 30 VDC, consuming a maximum of 20 mA at 10 VDC. The output function can be set to light or dark operate, and it features NPN complementary output circuit with a maximum output current of 50 mA. Safety features include short circuit and reverse polarity protection. The sensor's compact, rectangular design measures 8 mm in width, 25.1 mm in length, and 14.1 mm in depth, with a durable plastic housing and threaded stainless steel sleeves for mounting. It connects via a 200 mm long M8 4-pin flylead connector and is suitable for operating temperatures from -25 to +50 °C. This sensor is IP 67 rated, ensuring protection against dust and water ingress.
- Type:
- Through beam sensor
- Emitter / receiver:
- Receiver
- Light source:
- Use with pulsed red laser diode
- Actual range Sb:
- 5 m
- Nominal range Sn:
- 6 m
- Smallest object recognizable typ.:
- 3 mm (0,5 mm with aperture)
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- qTeach
- Suppression of reciprocal influence:
- Yes
- Response time / release time:
- < 0.1 ms < 0.12 ms
- Jitter:
- < 0.03 ms < 0.05 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA (@ 10 VDC)
- Current consumption typ.:
- 10 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN complementary
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 14.1 mm
- Design:
- Rectangular
- Mechanical mounting:
- Threaded sleeves M3 (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M8 4 pin, L=200 mm
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Operating temperature:
- -25 +50 °C
- Protection class:
- IP 67
