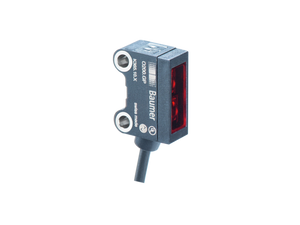

The Baumer O200.GP-GW1J.72CV/B005 11228019 is a high-performance sensor with background suppression and a sensing distance ranging from 20 to 175 mm. It features a pinpoint LED light source with a wavelength of 644 nm and a fast response time of less than 0.25 ms in High Speed Mode. This sensor is capable of recognizing objects as small as 1 mm at 100 mm distance. It includes a green LED for power indication and a yellow LED for output status, with a flashing output indicator for alignment or lens soiling. The sensor offers both teach-in and IO-Link options for distance adjustment and supports suppression of reciprocal influence. It operates on a voltage supply range of 10 to 30 VDC and has a push-pull output circuit with light/dark operate functionality. The sensor is designed with a durable plastic housing and a smooth stainless steel sleeve for mechanical mounting. It is IP67 rated for protection against dust and water ingress and can operate in temperatures ranging from -25 to +50 °C. The connection is facilitated via a 4-pin, 2-meter PVC cable.
- Type:
- Background suppression
- Sensing distance Tw:
- 20 175 mm
- Sensing range Tb:
- 3 192 mm
- Smallest object recognizable typ.:
- 1 mm at 100 mm
- Power on indication:
- LED green
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- Teach-in and IO-Link
- Suppression of reciprocal influence:
- Yes
- Beam type:
- Point
- Alignment optical axis:
- < 1,5°Light source=Pulsed PinPoint LED
- Wave length:
- 644 nm
- Response time / release time:
- < 0.25 ms (High Speed Mode)
- Jitter:
- < 0.06 ms (High Speed Mode)
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 40 mA (@ 10 VDC)
- Current consumption typ.:
- 16 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 15.8 mm
- Design:
- Rectangular
- Mechanical mounting:
- Sleeve smooth (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Protection class:
- IP 67
- Operating temperature:
- -25 +50 °C
