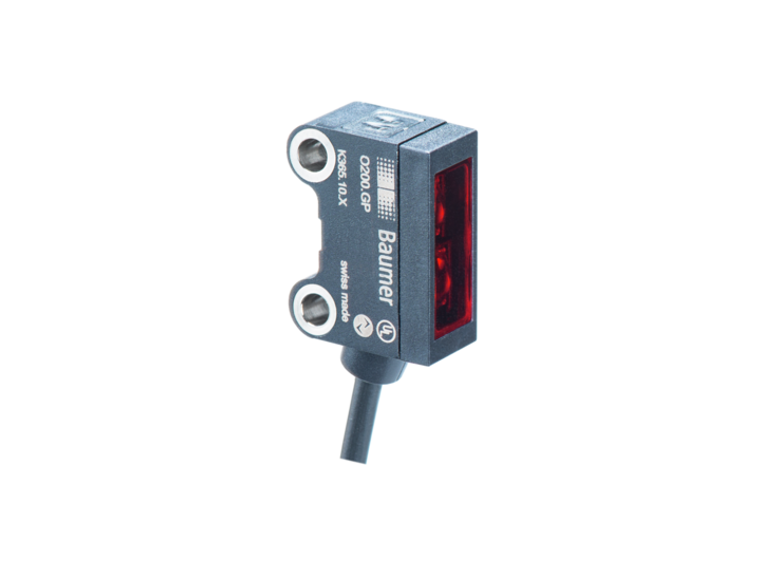

The Baumer O200.GP-NV1T.72NV/B005 is a high-precision sensor with background suppression and a sensing distance ranging from 20 to 175 mm. It features a pulsed PinPoint LED light source with a wavelength of 644 nm and a fast response time of ? 0.5 ms. The sensor can detect objects as small as 1 mm at 100 mm distance. It includes a green LED for power indication and a yellow LED for output status, with a flashing output indicator for alignment or lens soiling issues. The sensor offers qTeach for easy sensing distance adjustment and is equipped with features like short circuit and reverse polarity protection. It operates within a voltage supply range of 10 to 30 VDC and has a low current consumption. The compact, rectangular design measures 8 mm in width, 25.1 mm in length, and 15.8 mm in depth, with a smooth stainless steel sleeve for mechanical mounting and a durable plastic housing. It is IP67 rated for protection against dust and water ingress, making it suitable for harsh environments. The sensor connects via a 200 mm long M8 4-pin flylead connector with PVC insulation. Suitable for a wide range of industrial applications, it operates efficiently in temperatures ranging from -30 to +50 °C.
- Type:
- Background suppression
- Sensing distance Tw:
- 20 175 mm
- Sensing range Tb:
- 3 192 mm
- Smallest object recognizable typ.:
- 1 mm at 100 mm
- Power on indication:
- LED green
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- qTeach
- Suppression of reciprocal influence:
- Yes
- Beam type:
- Point
- Alignment optical axis:
- < 1,5°Light source=Pulsed PinPoint LED
- Wave length:
- 644 nm
- Response time / release time:
- ? 0.5 ms
- Jitter:
- ? 0.12 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 40 mA (@ 10 VDC)
- Current consumption typ.:
- 16 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN complementary
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 15.8 mm
- Design:
- Rectangular
- Mechanical mounting:
- Sleeve smooth (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M8 4 pin, L=200 mm
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Protection class:
- IP 67
- Operating temperature:
- -30 +50 °C
