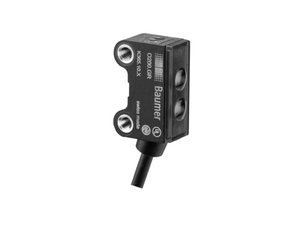

Baumer O200.GR-NV1Z.72NV/H006_BX30 11212630 is a background suppression sensor with a sensing distance of 30 mm and a range of 7 to 30 mm. It can recognize objects as small as 0.25 mm at 30 mm distance. Features include a green LED for power indication, a yellow LED output indicator, and a flashing output for alignment or dirty lens notification. It does not require sensing distance adjustment and includes suppression of reciprocal influence. The sensor uses a pulsed red LED light source with a wavelength of 644 nm and has a response time of less than 1 ms. It operates on a voltage supply range of 10 to 30 VDC, with a typical current consumption of 16 mA at 24 VDC. The output function can operate in light or dark conditions, and it has NPN complementary output circuit with a maximum output current of 50 mA. It includes short circuit and reverse polarity protection. The sensor's dimensions are 8 mm in width, 25.1 mm in height, and 14.1 mm in depth, with a rectangular design and threaded sleeves M3 for mechanical mounting. The housing is made of plastic (ASA, PMMA) with a PMMA front optics. It connects via a Flylead connector M8 4 pin, with a 200 mm PVC cable. The sensor is IP 67 rated for protection and can operate in temperatures ranging from -30 to +50 °C.
- Type:
- Background suppression
- Sensing distance Tw:
- 30 mm
- Sensing range Tb:
- 7 30 mm
- Smallest object recognizable typ.:
- 0.25 mm at 30 mm
- Power on indication:
- LED green
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- No
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1,5°Light source=Pulsed red LED
- Wave length:
- 644 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA (@ 30 VDC)
- Current consumption typ.:
- 16 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN complementary
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 14.1 mm
- Design:
- Rectangular
- Mechanical mounting:
- Threaded sleeves M3 (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M8 4 pin, L=200 mm
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Protection class:
- IP 67
- Operating temperature:
- -30 +50 °C
