Description

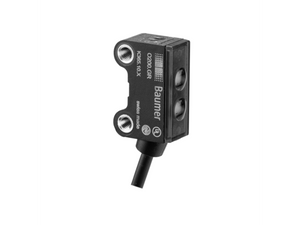

The Baumer O200.GR-NV1Z.72NV/H006_BX50 11212632 is a high-performance sensor with background suppression and a sensing range of 7 to 50 mm. It can detect objects as small as 0.25 mm at 30 mm distance. Features include a pulsed red LED light source with a wavelength of 644 nm, quick response and release time of less than 1 ms, and no need for sensing distance adjustment. It operates on a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 20 mA. The sensor includes both light and dark operating modes, NPN complementary output, and is equipped with short circuit and reverse polarity protection. Its compact design measures 8 mm in width, 25.1 mm in length, and 14.1 mm in depth, with a threaded sleeve M3 for mechanical mounting and a durable plastic housing. It also features an IP67 protection class, making it suitable for harsh environments with operating temperatures ranging from -30 to +50 °C. The sensor is connected via a 200 mm long flylead connector with an M8 4-pin configuration.
