Description

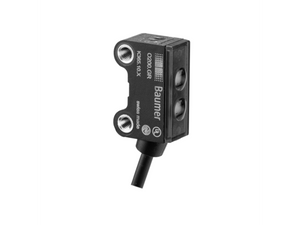

The Baumer O200.GR-PV1T.72CV/E026_H006_T003 11212669 is a high-performance sensor with background suppression and a sensing distance ranging from 15 to 72 mm. It features a pulsed red LED light source with a wavelength of 644 nm and a rapid response time of less than 0.5 ms. This sensor can detect objects as small as 0.25 mm at 40 mm distance. It includes a green LED for power indication and a yellow LED for output status, with a flashing output indicator for alignment or lens soiling. The sensor offers easy distance adjustment via qTeach and 1-Step Teach-in, and it is equipped with features like short circuit and reverse polarity protection. The compact, rectangular design measures 8 mm in width, 25.1 mm in length, and 14.1 mm in depth, with a threaded sleeve M3 for mechanical mounting and a durable plastic housing. It operates within a voltage supply range of 10 to 30 VDC and is IP67 rated for protection against dust and water ingress, suitable for temperatures ranging from -25 to +50 °C. The connection is facilitated by a 4-pin, 2-meter PVC cable. Ideal for precise sensing tasks in harsh environments.
