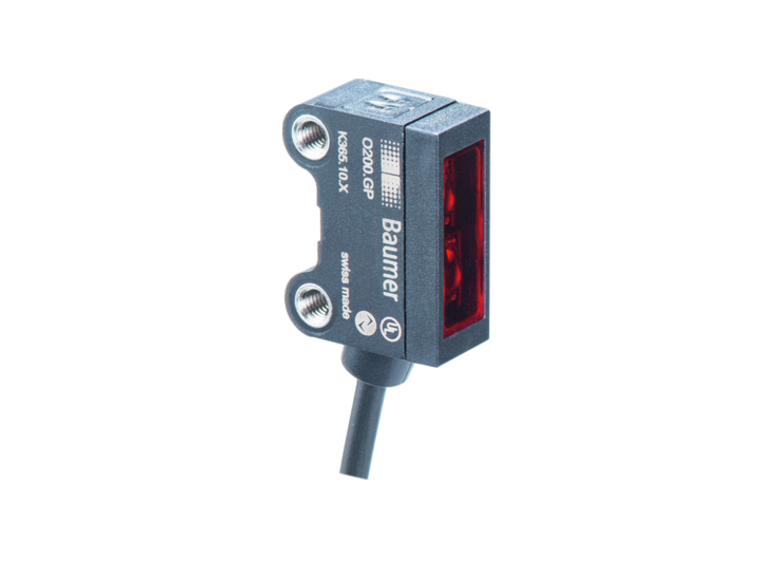

Baumer O200.RL.C-GW2I.72CV/A014_FIN1_H006 11231200
Baumer
$307.60
The Baumer O200.RL.C-GW2I.72CV/A014_FIN1_H006 11231200 is a retro-reflective sensor equipped with single lens optics and IO-Link dual channel technology. It features a pulsed red laser diode as its light source, with an actual range of 0.8 m and a nominal range of 1.2 m. This sensor can recognize objects as small as 3 mm at a distance of 500 mm. It includes a polarization filter and offers indicators for alignment or soiled lens and power status through flashing and LED signals respectively. Sensitivity can be adjusted via IO-Link, and it operates within a laser class 1 safety standard. The sensor provides a parallel beam with a wavelength of 680 nm and includes features like suppression of reciprocal influence, high-speed response and release times, and minimal jitter. It operates on a voltage supply range of 10 to 30 VDC and has a low current consumption. The output functions can operate in light or dark conditions with a push-pull output circuit. It also includes short circuit and reverse polarity protection. The sensor's compact design measures 8 mm in width, 25.1 mm in length, and 15.8 mm in depth, with a rectangular shape and threaded sleeves for mounting. It is constructed from durable plastic materials and can operate in temperatures ranging from -20 to +50 °C, with an IP 67 protection class. Connections are facilitated through a 4-pin, 2 m PVC cable.
- Type:
- Retro-reflective sensor
- Version:
- Single lens optics IO-Link dual channel
- Light source:
- Pulsed red laser diode
- Actual range Sb:
- 0.8 m
- Nominal range Sn:
- 1.2 m
- Smallest object recognizable typ.:
- 3 mm at 500 mm
- Polarization filter:
- Yes
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- IO-Link
- Laser class:
- 1
- Distance to focus:
- Parallel beam
- Wave length:
- 680 nm
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1,5°
- Response time / release time:
- < 0.2 ms (High Speed Mode)
- Jitter:
- < 0.18 ms (High Speed Mode)
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA (@ 10 VDC)
- Current consumption typ.:
- 10 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 50 mA (< 40 °C), sum of all outputs 20 mA (< 50 °C), sum of all outputs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 15.8 mm
- Design:
- Rectangular
- Mechanical mounting:
- Threaded sleeves M3 (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Operating temperature:
- -20 +50 °C
- Protection class:
- IP 67
