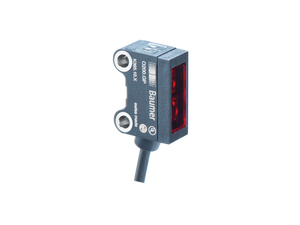

The Baumer O200.RL.T-PV1T.72CV/FIN1 11231186 is a retro-reflective sensor designed for transparency object detection. It features a pulsed red laser diode light source with a wavelength of 680 nm and includes a polarization filter to minimize signal attenuation to 10%. The sensor has an actual range of 0.8 m and a nominal range of 1.2 m. It is equipped with a flashing output indicator for alignment or soiled lens detection, and LED indicators for power status and output. Sensitivity can be adjusted via qTeach. This model is classified as Laser class 1, ensuring safety in operation. The sensor's response time is less than 0.25 ms, with jitter under 0.06 ms, and it operates within a voltage supply range of 10 to 30 VDC. It features both light and dark operating modes through PNP complementary output circuits, supporting an output current of 50 mA. Safety features include short circuit and reverse polarity protection. The sensor's compact design measures 8 mm in width, 25.1 mm in length, and 15.8 mm in depth, with a smooth stainless steel sleeve for mechanical mounting and a durable plastic housing. Connection is facilitated via a 4-pin, 2 m PVC cable. The sensor operates effectively in temperatures ranging from -20 to +50 °C and is rated IP 67 for protection against dust and water ingress.
- Type:
- Retro-reflective sensor
- Version:
- Transparency object detection
- Light source:
- Pulsed red laser diode
- Actual range Sb:
- 0.8 m
- Nominal range Sn:
- 1.2 m
- Polarization filter:
- Yes
- Minimal signal attenuation:
- 10 %
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- qTeach
- Laser class:
- 1
- Distance to focus:
- Parallel beam
- Wave length:
- 680 nm
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1,5°
- Response time / release time:
- < 0.25 ms
- Jitter:
- < 0.06 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA (@ 10 VDC)
- Current consumption typ.:
- 10 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP complementary
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 15.8 mm
- Design:
- Rectangular
- Mechanical mounting:
- Sleeve smooth (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Operating temperature:
- -20 +50 °C
- Protection class:
- IP 67
