Description

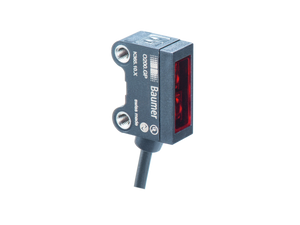

The Baumer O200.RR-PV1Z.72CV 11212600 is a retro-reflective sensor equipped with a pulsed red LED light source, offering a nominal range of 4 meters and an actual range of 3 meters. It can detect objects as small as 7 mm and features a polarization filter to enhance detection accuracy. The sensor includes a flashing output indicator for alignment or soiled lens detection, and LED indicators for power status and output. It operates without sensitivity adjustment and has a wavelength of 644 nm. Designed to minimize reciprocal influence, it has an alignment optical axis of less than 1.5° and a response time of less than 0.5 ms. The sensor supports a voltage supply range of 10 to 30 VDC, with a typical current consumption of 16 mA at 24 VDC and a maximum of 20 mA at 30 VDC. It features light/dark operate output functions with PNP complementary output circuit and can handle an output current of 50 mA. Safety features include short circuit and reverse polarity protection. The sensor's compact design measures 8 mm in width, 25.1 mm in length, and 15.8 mm in depth, with a smooth stainless steel sleeve for mechanical mounting and a durable plastic housing. It connects via a 4-pin, 2-meter PVC cable and operates within a temperature range of -25 to +50 °C, with an IP 67 protection class for robust performance in various environments.
