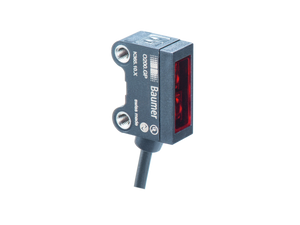

The Baumer O200.SP-NV1T.72CV/H006 11212661 is a standard object detection light barrier featuring a background position from 25 to 180 mm and a scanning range of 90% to 85% of the background position. It can detect objects as small as 2.5 mm. The device includes a green LED for power indication and a yellow LED for output status, with a flashing output indicator for alignment or lens soiling. It uses a pulsed PinPoint LED with a wavelength of 644 nm and has a quick response time of less than 0.5 ms. The sensor operates on a voltage supply range of 10 to 30 VDC, with typical current consumption of 16 mA at 24 VDC. It features both light and dark operating modes, NPN complementary output, and is capable of handling an output current of 50 mA. Safety features include short circuit and reverse polarity protection. The sensor's compact design measures 8 mm in width, 25.1 mm in height, and 15.8 mm in depth, with a rectangular, plastic housing and threaded sleeves for mounting. It connects via a 4-pin, 2-meter PVC cable and is rated IP 67 for protection against dust and water, suitable for operating temperatures ranging from -25 to +50 °C.
