Description

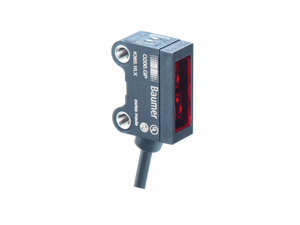

The Baumer O200.SP.T-GW1J.72NV 11223790 is a high-performance light barrier designed for transparency object detection. It features a background position from 15 to 180 mm and a scanning range of 90% to 85% of the background position. The device ensures minimal signal attenuation of 5% and includes a green LED for power indication and a yellow LED for output status. It offers advanced features such as teach-in and IO-Link for sensing distance adjustment, suppression of reciprocal influence, and a point beam type with a precise alignment optical axis of less than 1.5°. The light source is a pulsed PinPoint LED with a wavelength of 644 nm, providing a response time of less than 0.25 ms in High Speed Mode and jitter under 0.1 ms. It operates on a voltage supply range of 10 to 30 VDC, with a typical current consumption of 16 mA at 24 VDC. The output function can operate in light or dark modes, and the device includes push-pull output circuitry with a maximum output current of 50 mA. Safety features include short circuit and reverse polarity protection. The sensor's compact design measures 8 mm in width, 25.1 mm in length, and 15.8 mm in depth, with a smooth stainless steel sleeve for mechanical mounting and a durable plastic housing. It is equipped with a flylead connector M8 4 pin and is rated IP 67 for protection against dust and water, suitable for operating temperatures ranging from -25 to +50 °C.
