Baumer O200.SP.T-NV1T.72NV/H006 11230718

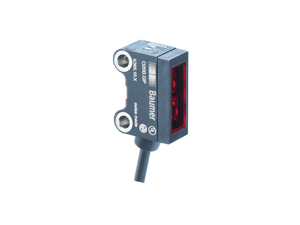

Baumer O200.SP.T-NV1T.72NV/H006 11230718 is a light barrier designed for transparency object detection. It features a background position from 25 to 180 mm and a scanning range of 90% to 85% of the background position. The device ensures minimal signal attenuation of 10% and includes a green LED for power indication and a yellow LED as an output indicator, which flashes when alignment is needed or the lens is soiled. The sensing distance can be adjusted via qTeach, and it has a feature to suppress reciprocal influence. The light barrier uses a pulsed PinPoint LED with a wavelength of 644 nm and operates within a voltage supply range of 10 to 30 VDC. It consumes a maximum of 40 mA at 10 VDC and typically 16 mA at 24 VDC. The output function can operate in light or dark conditions, and it features an NPN complementary output circuit with a maximum output current of 50 mA. It includes short circuit and reverse polarity protection. The device is compact, measuring 8 mm in width, 25.1 mm in height, and 15.8 mm in depth, with a rectangular design and threaded sleeves M3 for mechanical mounting. The housing is made of plastic (ASA, PMMA) with a PMMA front optics. It connects via a Flylead connector M8 4 pin with a 200 mm PVC cable. The light barrier is IP 67 rated for protection against dust and water and operates in temperatures ranging from -25 to +50 °C.
