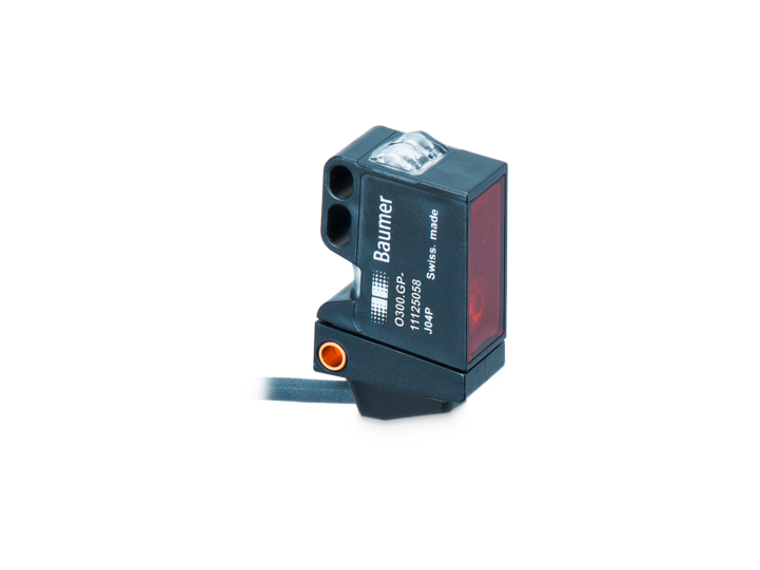

The Baumer O300.DI.2-GLUBO.72CU is a high-precision distance measuring sensor with a measuring distance of 20 to 300 mm and a measuring range of 280 mm. It features multiple adjustment options including Teach-in and IO-Link, and provides visual feedback through green and yellow LEDs for power and output status, respectively. The sensor offers repeat accuracy levels ranging from ? 150 to 4000 µm in Raw mode to ? 40 to 1000 µm in High Accuracy mode, and maintains a linearity error of ± 3% Mr. Equipped with a pulsed infrared diode light source with a wavelength of 860 nm, it ensures quick response times from < 1.5 ms in Raw mode to < 14 ms in High Accuracy mode. The sensor operates on a 12 to 30 VDC power supply and includes features like short circuit and reverse polarity protection. Its robust design, encapsulated in a plastic housing with PMMA front optics, is IP 67 rated for dust and water resistance, and can withstand harsh environmental conditions with operating temperatures ranging from -25 to +60 °C. The sensor is also designed to handle significant vibration and shock, complying with IEC standards. It is suitable for a variety of industrial applications where precise distance measurement is critical.
- Type:
- Distance measuring
- Measuring distance Sd:
- 20 300 mm
- Measuring range Mr:
- 280 mm
- Adjustment:
- Teach-in and IO-Link
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Repeat accuracy:
- ? 150 4000 µm (Raw) ? 120 3000 µm (High Speed) ? 80 2000 µm (Standard) ? 40 1000 µm (High Accuracy)
- Linearity error:
- ± 3 % Mr
- Beam type:
- Point
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 2°
- Temperature drift:
- < 0,3 % Sde/KLight source=Pulsed infrared diode
- Wave length:
- 860 nm
- Response time / release time:
- < 1.5 ms (Raw) < 2.25 ms (High Speed Mode) < 4.5 ms (Standard Mode) < 14 ms (High Accuracy Mode)
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 30 mA
- Voltage drop Vd:
- <2 VDC
- Output circuit:
- Analog 0 ... 10 VDC Push-pull / IO-Link
- Output current:
- 100 mA (push-pull)
- Switching output:
- Light operate, switchable
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.3 mm
- Depth:
- 23 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Protection class:
- IP 67
- Operating temperature:
- -25 +60 °C
- Storage temperature:
- -40 +70 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 50 g / 11 ms, 10 impulses per axis and direction
