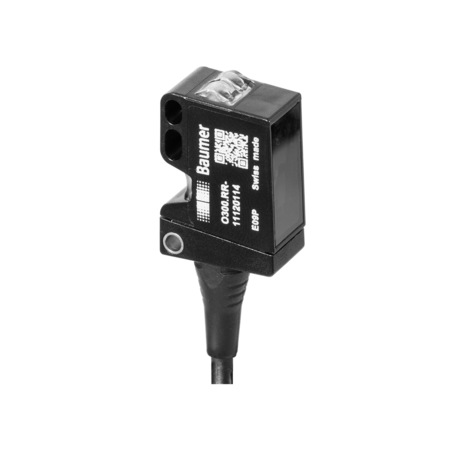

Baumer O300.GP-PV1T.72CU 11120104 is a background suppression sensor with a sensing distance of 30 to 200 mm and a sensing range of 15 to 200 mm. It features a pulsed PinPoint LED light source with a wavelength of 630 nm and a quick response time of less than 0.49 ms. The sensor operates on a voltage supply range of 10 to 30 VDC and has a typical current consumption of 30 mA. It includes both light and dark operating modes with a PNP complementary output circuit and can handle an output current of up to 100 mA. The sensor is equipped with short circuit and reverse polarity protection, and it has a green LED for power indication and a yellow LED for light indication. Sensing distance can be adjusted via qTeach, and it has a suppression feature for reciprocal influence. The sensor's compact, rectangular design measures 12.9 mm in width, 32.3 mm in height, and 23 mm in depth, with a housing made of plastic (ASA, PMMA) and a PMMA front optics. It includes a 4-pin, 2-meter cable for connections and is rated IP 67 for protection against dust and water, suitable for operating temperatures ranging from -25 to +60 °C.
- Type:
- Background suppression
- Sensing distance Tw:
- 30 200 mm
- Sensing range Tb:
- 15 200 mm
- Power on indication:
- LED green
- Light indicator:
- LED yellow
- Sensing distance adjustment:
- qTeach
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 2°Light source=Pulsed PinPoint LED
- Wave length:
- 630 nm
- Response time / release time:
- < 0.49 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 45 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <3 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP complementary
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.3 mm
- Depth:
- 23 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Protection class:
- IP 67
- Operating temperature:
- -25 +60 °C
