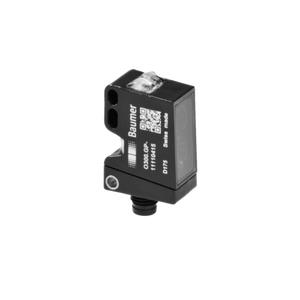

The Baumer O300.RL-GW1J.72N 11172769 is a retro-reflective sensor equipped with a pulsed red laser diode, offering a nominal range of 6 meters and an actual range of 5 meters. It features high repeat accuracy of 0.2 mm at 500 mm and includes a polarization filter. The sensor is designed with both yellow and green LED indicators for light and power status, respectively, and offers sensitivity adjustment through Teach-in and IO-Link. Safe for various applications, it is classified as Laser class 1 with a parallel beam focus and a wavelength of 656 nm. It also boasts quick response and release times of less than 0.1 ms, operates within a voltage supply range of 11 to 30 VDC, and has a maximum current consumption of 30 mA. The output functions can operate in light or dark conditions with a push-pull output circuit and supports up to 100 mA output current. Enhanced durability features include short circuit and reverse polarity protection. The sensor's compact, rectangular design measures 12.9 mm in width, 32.3 mm in height, and 23 mm in depth, constructed from durable plastic materials (ASA, PMMA) with a PMMA front optics. It connects via an M8 4-pin connector and operates effectively in temperatures ranging from -10 to +60 °C. The device is IP 67 rated, ensuring protection against dust and water ingress. For more detailed information, refer to the datasheet available [here](https://www.baumer.com/medias/__secure__/Baumer_O300.RL-GW1J.72N_EN_20201216_DS.pdf?mediaPK=9009214488606).
- Type:
- Retro-reflective sensor
- Light source:
- Pulsed red laser diode
- Actual range Sb:
- 5 m
- Nominal range Sn:
- 6 m
- Repeat accuracy:
- 0.2 mm at 500 mm
- Polarization filter:
- Yes
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- Teach-in and IO-Link
- Laser class:
- 1
- Distance to focus:
- Parallel beam
- Wave length:
- 656 nm
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 2°
- Response time / release time:
- < 0.1 ms
- Voltage supply range +Vs:
- 11 30 VDC
- Current consumption max. (no load):
- 30 mA
- Current consumption typ.:
- 25 mA
- Voltage drop Vd:
- <2.5 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.3 mm
- Depth:
- 23 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
