Description

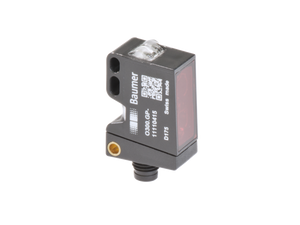

The Baumer O300.SP-GW1J.72N/E022 11199086 is a high-performance light barrier with a line beam type and a background position of 30 to 120 mm. It features a scanning range of 90% to 85% of the specified distance and is equipped with a pulsed PinPoint LED light source with a wavelength of 630 nm. The device offers quick response and release times of less than 1.5 ms, operates on a voltage supply range of 10 to 30 VDC, and has a maximum current consumption of 45 mA. It includes a green LED for power indication and a yellow LED for light indication. Sensing distance can be adjusted via Teach-in and IO-Link, ensuring flexibility and ease of use. The output functions include light/dark operate with a push-pull output circuit and an output current of 100 mA. Safety features include short circuit and reverse polarity protection. The sensor's compact design measures 12.9 mm in width, 32.3 mm in height, and 23 mm in depth, with a durable plastic housing made of ASA and PMMA. It offers an IP 67 protection class, making it suitable for harsh environments, and operates within a temperature range of -25 to +60 °C. The sensor connects via an M8 4-pin connector, ensuring easy integration into various systems.
