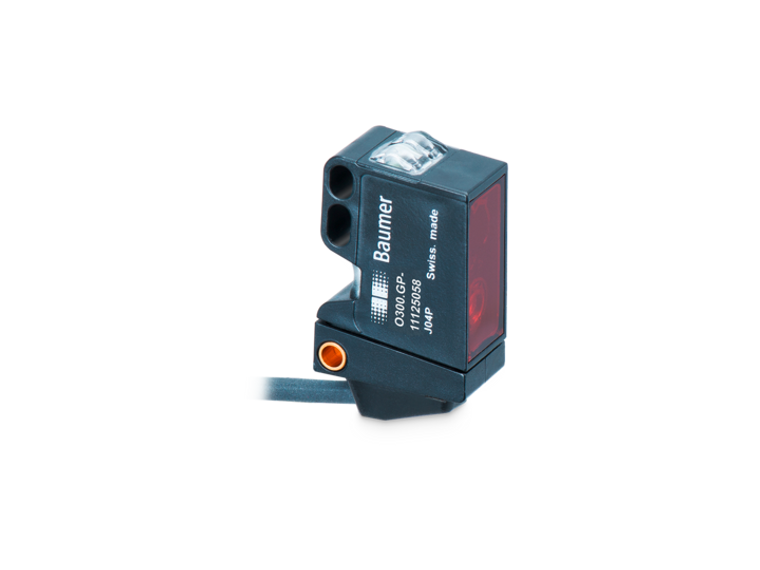

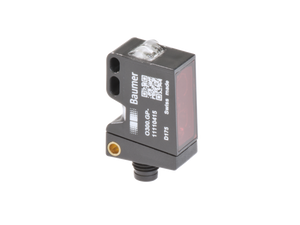

Baumer O300.TI-ZZZZ.72CU 11209575 is a through beam sensor emitter featuring a pulsed infrared diode light source with a wavelength of 850 nm. It offers an actual range of 10 m and a nominal range of 15 m. The sensor is equipped with a green LED power indication and has an alignment optical axis of less than 2°. It operates within a voltage supply range of 10 to 30 VDC, with a typical current consumption of 30 mA and a maximum of 40 mA. The unit is reverse polarity protected and has dimensions of 12.9 mm in width, 32.3 mm in length, and 23 mm in depth. The rectangular housing is made of plastic (ASA, PMMA) with a PMMA front optics. It includes a 4-pin, 2 m cable connection and operates in temperatures ranging from -25 to +60 °C. The sensor is IP 67 certified, indicating a high level of protection against dust and water ingress.
- Resolution:
- 752 × 480 px
- Sensor type:
- 1/3? CMOS, monochrome
- Illumination:
- integrated, LED white
- LED class:
- risk group 1 (low risk, EN 62471:2008)
- High-resolution mode:
- max. 50 inspections per second
- High-speed mode (limited resolution):
- max. 100 inspections per second
- Object distance min.:
- 50 mm
- Number of jobs (products):
- ? 255
- Features per job:
- 32
- Signal processing:
- Baumer FEX® 4.0
- Defect image memory:
- 32
- Lens:
- 10 mm
- Voltage supply range +Vs:
- 18 30 V DC
- Power consumption:
- Typical 5 W (Imax = 1 A at 24 V)
- Digital inputs:
- 5 inputs (8 30 V) trigger job selection external teach-in encoders (CH-A, CH-B) 500 kHz
- Digital outputs:
- 5 outputs (PNP) Pass / Fail Flash Sync Alarm Camera Ready Output Enable
- Initial setup:
- Ethernet (10BASE-T / 100BASE-TX)
- Process interface:
- TCP/UDP (Ethernet)
- Visualization:
- web interface
- Width:
- 53 mm
- Height:
- 99.5 mm
- Depth:
- 38 mm
- Weight:
- ? 250 g
- Material:
- housing: aluminum cover glass: PMMA
