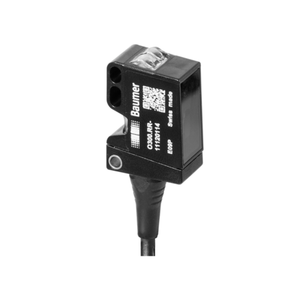

Baumer O300.ZL-GW1J.72CU 11176829 is an intensity difference sensor with a sensing distance of 10 to 250 mm and a repeat accuracy of less than 0.1 mm at laser focus. It features a pulsed red laser diode light source, laser class 1, and a wavelength of 656 nm. The sensor has a quick response and release time of less than 0.1 ms, operates on a voltage supply range of 11 to 30 VDC, and has a typical current consumption of 25 mA. It includes both light and dark operating modes with a push-pull output circuit and can handle an output current of 100 mA. The device is equipped with short circuit and reverse polarity protection, and has a compact rectangular design with dimensions of 12.9 mm in width, 32.3 mm in height, and 23 mm in depth. The housing is made of plastic (ASA, PMMA) with a PMMA front optics. It offers a connection via a 4-pin, 2-meter cable and is rated IP 67 for protection against dust and water ingress. Suitable for operating temperatures ranging from -10 to +60 °C, the sensor also supports teach-in and IO-Link for easy sensing distance adjustment.
- Type:
- Intensity difference
- Sensing distance Tw:
- 10 250 mm
- Repeat accuracy:
- < 0.1 mm at laser focus
- Power on indication:
- LED green
- Light indicator:
- LED yellow
- Sensing distance adjustment:
- Teach-in and IO-Link
- Distance to focus:
- 80 mm
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 2°Light source=Pulsed red laser diode
- Laser class:
- 1
- Wave length:
- 656 nm
- Response time / release time:
- < 0.1 ms
- Voltage supply range +Vs:
- 11 30 VDC
- Current consumption max. (no load):
- 30 mA
- Current consumption typ.:
- 25 mA
- Voltage drop Vd:
- <2.5 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.3 mm
- Depth:
- 23 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Protection class:
- IP 67
- Operating temperature:
- -10 +60 °C
