Description

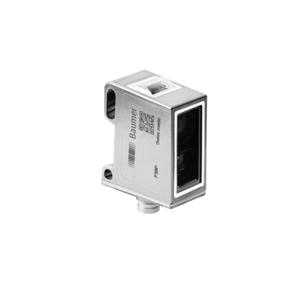

Baumer O300W.SL-GW1J.PVN 11179009 is a light barrier with a washdown design suitable for standard object detection. It features a background position from 30 to 250 mm and a scanning range of 90% to 85% of the specified distance. The device offers high repeat accuracy of less than 0.1 mm at 100 mm and includes a green LED for power indication and a yellow LED for light indication. Sensing distance can be adjusted via Teach-in and IO-Link, with a focus distance of 400 mm. It includes features such as suppression of reciprocal influence, alignment of the optical axis within 2 degrees, and Ecolab approval. The light source is a pulsed red laser diode, classified as Laser class 1 with a wavelength of 656 nm. It has a quick response and release time of less than 0.25 ms, operates on a voltage supply range of 11 to 30 VDC, and has a maximum no-load current consumption of 30 mA. The output function can operate in light or dark mode with a push-pull output circuit and supports an output current of 100 mA. It includes short circuit and reverse polarity protection. The sensor's dimensions are 16.5 mm in width, 34.7 mm in height, and 28.2 mm in depth, housed in stainless steel 1.4404 (V4A) with a PMMA front optics. It connects via an M8 4-pin connector and is rated IP 68/69K & proTect+ for high protection against ingress, suitable for operating temperatures from -10 to +60 °C. [View datasheet](https://www.baumer.com/medias/__secure__/Baumer_O300W.SL-GW1J.PVN_EN_20210427_DS.pdf?mediaPK=9018370392094).
