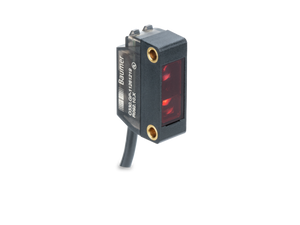

The Baumer O330.TP-ZZZZZ.72ZV is a through beam sensor designed as an emitter with a pulsed PinPoint LED light source. It features a nominal range of 12 meters and an actual range of 10 meters. The sensor operates with a green LED power indication and has a wavelength of 634 nm. Its alignment accuracy is less than 1.5°. This model requires a voltage supply range of 10 to 30 VDC and has a maximum no-load current consumption of 50 mA, with a typical consumption of 25 mA. It includes reverse polarity protection and is housed in a rectangular, smooth brass sleeve with dimensions of 11 mm in width, 32 mm in length, and 21 mm in depth. The housing material is made of durable plastic (ABS, ASA, PMMA) with a PMMA front optics. It connects via a 4-pin, 2-meter PVC cable. The sensor operates within a temperature range of -25 to +55 °C, offers IP 67 protection class, and can be stored between -40 and +70 °C.
- Type:
- Through beam sensor
- Emitter / receiver:
- Emitter
- Light source:
- Pulsed PinPoint LED
- Actual range Sb:
- 10 m
- Nominal range Sn:
- 12 m
- Power on indication:
- LED green
- Wave length:
- 634 nm
- Alignment optical axis:
- < 1,5°
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 50 mA
- Current consumption typ.:
- 25 mA
- Reverse polarity protection:
- Yes
- Width / diameter:
- 11 mm
- Height / length:
- 32 mm
- Depth:
- 21 mm
- Design:
- Rectangular
- Mechanical mounting:
- Sleeve smooth (brass)
- Housing material:
- Plastic (ABS, ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Cable characteristics:
- PVC / PVC 4 x 0.14 mm²
- Operating temperature:
- -25 +55 °C
- Protection class:
- IP 67
- Storage temperature:
- -40 +70 °C
