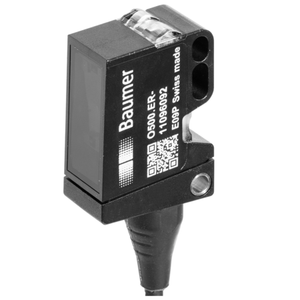

Baumer O500.GP-PV1T.72CU 11096068
Baumer
The Baumer O500.GP-PV1T.72CU 11096068 is a high-performance sensor with background suppression and a sensing distance ranging from 60 to 400 mm. It features a pulsed PinPoint LED light source with a wavelength of 630 nm and a quick response time of less than 0.49 ms. The sensor is equipped with a green LED for power indication and a yellow LED for light indication. It offers easy sensing distance adjustment via qTeach and includes features like suppression of reciprocal influence, short circuit protection, and reverse polarity protection. The sensor operates on a voltage supply range of 10 to 30 VDC and has a typical current consumption of 30 mA. It supports both light and dark operating modes with PNP complementary output circuit and can handle an output current of up to 100 mA. The device is designed in a rectangular shape with dimensions of 18 mm in width, 45 mm in height, and 32 mm in depth, and is made from durable plastic materials (ASA, PMMA) with a PMMA front optics. It includes a 4-pin, 2-meter cable for connections and is rated IP 67 for protection against dust and water, making it suitable for a wide range of industrial applications. The operating temperature range is from -25 to +60 °C.
- Type:
- Background suppression
- Sensing distance Tw:
- 60 400 mm
- Sensing range Tb:
- 30 400 mm
- Power on indication:
- LED green
- Light indicator:
- LED yellow
- Sensing distance adjustment:
- qTeach
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1°Light source=Pulsed PinPoint LED
- Wave length:
- 630 nm
- Response time / release time:
- < 0.49 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 40 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <3 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP complementary
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 18 mm
- Height / length:
- 45 mm
- Depth:
- 32 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Protection class:
- IP 67
- Operating temperature:
- -25 +60 °C
