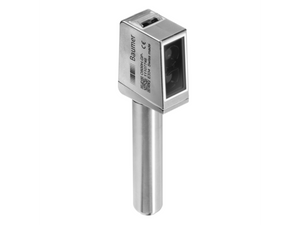

The Baumer O500H.DP.2-GLUBO.PVOK is a high-precision distance measuring sensor designed for industrial applications. It offers a measuring distance of 60 to 550 mm and a measuring range of 490 mm. The sensor features multiple modes for repeat accuracy, ranging from 200 to 5000 µm in Raw mode to 50 to 1250 µm in High Accuracy mode. It includes Teach-in and IO-Link for easy adjustment, and LED indicators for power and output status. The sensor operates with a pulsed PinPoint LED light source at a wavelength of 630 nm and has response times as quick as 1.5 ms in Raw mode. It supports a voltage supply range of 12 to 30 VDC and includes protection features like short circuit and reverse polarity protection. The robust stainless steel housing and PMMA front optics are designed to withstand harsh conditions, certified with IP 68/69K and proTect+ for high resistance against water and dust. The sensor is suitable for a wide range of temperatures and can handle significant vibration and shock impacts.
- Type:
- Distance measuring
- Measuring distance Sd:
- 60 550 mm
- Measuring range Mr:
- 490 mm
- Adjustment:
- Teach-in and IO-Link
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Repeat accuracy:
- ? 200 5000 µm (Raw) ? 150 3750 µm (High Speed) ? 100 2500 µm (Standard) ? 50 1250 µm (High Accuracy)
- Linearity error:
- ± 3 % Mr
- Beam type:
- Point
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1°
- Temperature drift:
- < 0,3 % Sde/KLight source=Pulsed PinPoint LED
- Wave length:
- 630 nm
- Response time / release time:
- < 1.5 ms (Raw) < 2.25 ms (High Speed Mode) < 4.5 ms (Standard Mode) < 14 ms (High Accuracy Mode)
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 30 mA
- Voltage drop Vd:
- <2 VDC
- Output circuit:
- Analog 0 ... 10 VDC Push-pull / IO-Link
- Output current:
- 100 mA (push-pull)
- Switching output:
- Light operate, switchable
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 20.2 mm
- Height / length:
- 47.7 mm
- Depth:
- 36.4 mm
- Design:
- Rectangular
- Housing material:
- Stainless steel 1.4404 (V4A)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M12, L=300 mm
- Protection class:
- IP 68/69K & proTect+
- Operating temperature:
- -25 +60 °C
- Storage temperature:
- -40 +70 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 50 g / 11 ms, 10 impulses per axis and direction
