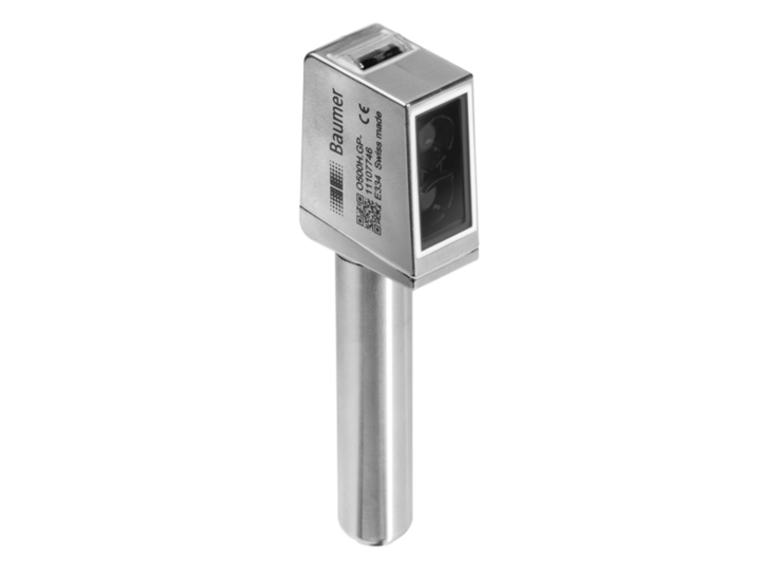

Baumer O500H.SP-GW1J.PVOV/B005 11141395

(No reviews yet) Write a Review

Write a Review

Baumer

Baumer O500H.SP-GW1J.PVOV/B005 11141395

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

11141395

UPC:

MPN:

11141395

Condition:

New

Type:

Light barrier

Special type:

Hygienic design

Version:

Standard object detection

Background position Sde:

60 … 1200 mm

Scanning range Sa:

90% ... 82% Sde

Power on indication:

LED green

Light indicator:

LED yellow

Sensing distance adjustment:

Teach-in and IO-Link

Suppression of reciprocal influence:

Yes

Alignment optical axis:

< 1°

Approvals/certificates:

Ecolab Adapted from EHEDGLight source=Pulsed PinPoint LED

Wave length:

630 nm

Response time / release time:

< 0.49 ms

Voltage supply range +Vs:

10 … 30 VDC

Current consumption max. (no load):

40 mA

Current consumption typ.:

30 mA

Voltage drop Vd:

<3 VDC

Output function:

Light / dark operate

Output circuit:

Push-pull

Output current:

100 mA

Short circuit protection:

Yes

Reverse polarity protection:

Yes

Width / diameter:

20.2 mm

Height / length:

47.7 mm

Depth:

36.4 mm

Design:

Rectangular

Housing material:

Stainless steel 1.4404 (V4A)

Front (optics):

PMMA

Connection types:

Flylead connector M12, L=300 mm

Protection class:

IP 68/69K & proTect+

Operating temperature:

-25 … +60 °C

Datasheet:

View

Operating Manual:

View
