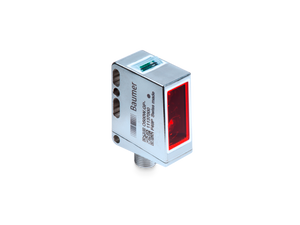

The Baumer O500W.DP.2-GLIAJ.PVF/H002 is a high-precision distance measuring sensor designed for industrial applications. It offers a measuring distance of 60 to 550 mm and a measuring range of 490 mm. The sensor features multiple accuracy modes, with repeat accuracy ranging from ? 200 to 5000 µm in Raw mode to ? 50 to 1250 µm in High Accuracy mode. It includes Teach-in and IO-Link for easy adjustment and configuration, and it is equipped with a pulsed PinPoint LED light source with a wavelength of 630 nm. The response times vary by mode, from less than 1.5 ms in Raw mode to less than 14 ms in High Accuracy mode. The sensor operates on a 12 to 30 VDC power supply and has a maximum current consumption of 30 mA with no load. It features a robust stainless steel housing, rated IP 68/69K for high protection against dust and water ingress, and is designed to withstand harsh environmental conditions with operating temperatures ranging from -25 to +60 °C. The sensor also includes short circuit and reverse polarity protection, ensuring reliable operation in complex industrial settings.
- Type:
- Distance measuring
- Measuring distance Sd:
- 60 550 mm
- Measuring range Mr:
- 490 mm
- Adjustment:
- Teach-in and IO-Link
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Repeat accuracy:
- ? 200 5000 µm (Raw) ? 150 3750 µm (High Speed) ? 100 2500 µm (Standard) ? 50 1250 µm (High Accuracy)
- Linearity error:
- ± 3 % Mr
- Beam type:
- Point
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1°
- Temperature drift:
- < 0,3 % Sde/KLight source=Pulsed PinPoint LED
- Wave length:
- 630 nm
- Response time / release time:
- < 1.5 ms (Raw) < 2.25 ms (High Speed Mode) < 4.5 ms (Standard Mode) < 14 ms (High Accuracy Mode)
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 30 mA
- Voltage drop Vd:
- <2 VDC
- Output circuit:
- Analog 4 ... 20 mA Push-pull / IO-Link
- Load resistance:
- < (+Vs - 6 V) / 0,02 A
- Output current:
- 100 mA (push-pull)
- Switching output:
- Light operate, switchable
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 20.2 mm
- Height / length:
- 47.9 mm
- Depth:
- 37.7 mm
- Design:
- Rectangular
- Housing material:
- Stainless steel 1.4404 (V4A)
- Front (optics):
- PMMA
- Connection types:
- Connector M12 5 pin
- Protection class:
- IP 68/69K & proTect+
- Operating temperature:
- -25 +60 °C
- Storage temperature:
- -40 +70 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 50 g / 11 ms, 10 impulses per axis and direction
