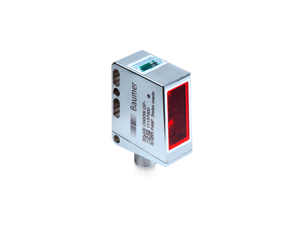

The Baumer O500W.SP-GW1J.PVO/H002 11137002 is a light barrier designed for standard object detection with a washdown design suitable for harsh environments. It features a scanning range of 60 to 600 mm with a response time of less than 0.49 ms. The device includes a pulsed PinPoint LED with a wavelength of 630 nm and offers both light and dark operating modes. It is equipped with a green LED for power indication and a yellow LED for light indication. Sensing distance can be adjusted via Teach-in and IO-Link, ensuring flexibility and ease of use. The unit has a push-pull output circuit with a maximum output current of 100 mA and includes safety features such as short circuit and reverse polarity protection. The robust stainless steel housing (1.4404 V4A) with PMMA front optics and an IP 68/69K & proTect+ rating ensures durability and reliability in extreme conditions. The sensor operates within a voltage supply range of 10 to 30 VDC and has a typical current consumption of 30 mA. Dimensions are 20.2 mm in width, 47.9 mm in height, and 37.7 mm in depth, with a connector type of M12 4 pin for easy integration. Suitable for a wide range of industrial applications, this sensor operates effectively within a temperature range of -25 to +60 °C.
- Type:
- Light barrier
- Special type:
- Washdown design
- Version:
- Standard object detection
- Background position Sde:
- 60 600 mm
- Scanning range Sa:
- 90% ... 85% Sde
- Power on indication:
- LED green
- Light indicator:
- LED yellow
- Sensing distance adjustment:
- Teach-in and IO-Link
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1°
- Approvals/certificates:
- EcolabLight source=Pulsed PinPoint LED
- Wave length:
- 630 nm
- Response time / release time:
- < 0.49 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 40 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <3 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 20.2 mm
- Height / length:
- 47.9 mm
- Depth:
- 37.7 mm
- Design:
- Rectangular
- Housing material:
- Stainless steel 1.4404 (V4A)
- Front (optics):
- PMMA
- Connection types:
- Connector M12 4 pin
- Protection class:
- IP 68/69K & proTect+
- Operating temperature:
- -25 +60 °C
