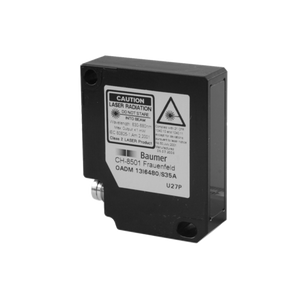

The Baumer OADM 13I7580/S35A 11017094 is a high-precision optical distance sensor with a measuring range of 50 to 550 mm. It features Teach-in adjustment via button or external control, with a minimum Teach-in range of 10 mm. The sensor is equipped with a green LED for power indication and a red LED to signal a soiled lens. It offers a resolution between 10 and 1150 µm and a linearity error ranging from ±0.08 to 3.5 mm. The sensor emits a line beam with a width of 2 to 1 mm and a height of 4 to 11 mm, ensuring accurate targeting and measurement. This model uses a pulsed red laser diode with a wavelength of 650 nm and falls under Laser class 2. It has a fast response and release time of less than 2 ms, operates on a voltage supply range of 12 to 28 VDC, and consumes a maximum of 100 mA with no load. The output is analog, providing a signal of 4 to 20 mA, and it includes safety features such as short circuit and reverse polarity protection. The sensor's compact design measures 13.4 mm in width, 48.2 mm in height, and 40 mm in depth, with a durable aluminum housing and glass optics. It connects via an M8 4-pin connector and is designed to withstand ambient light up to 40 kLux. Rated IP 67, it is protected against dust and water ingress, making it suitable for harsh environments. The operating temperature range is from 0 to +50 °C, ensuring reliable performance across various conditions.
- Measuring distance Sd:
- 50 550 mm
- Adjustment:
- Teach-in: button / external
- Teach-in range min.:
- > 10 mm
- Power on indication:
- LED green
- Soiled lens indicator:
- LED red
- Resolution:
- 10 1150 µm
- Linearity error:
- ± 0.08 3.5 mm
- Beam type:
- Line
- Beam width:
- 2 1 mm
- Beam height:
- 4 11 mm
- Interference suppression:
- < 30 ms
- Temperature drift:
- < 0,07 % Sde/KLight source=Pulsed red laser diode
- Wave length:
- 650 nm
- Laser class:
- 2
- Response time / release time:
- < 2 ms
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 100 mA
- Output circuit:
- Analog
- Output signal:
- 4 ... 20 mA
- Load resistance:
- < (+Vs - 6 V) / 0,02 A
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 13.4 mm
- Height / length:
- 48.2 mm
- Depth:
- 40 mm
- Design:
- Rectangular
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M8 4 pin
- Ambient light immunity:
- < 40 kLux
- Protection class:
- IP 67
- Operating temperature:
- 0 +50 °C
