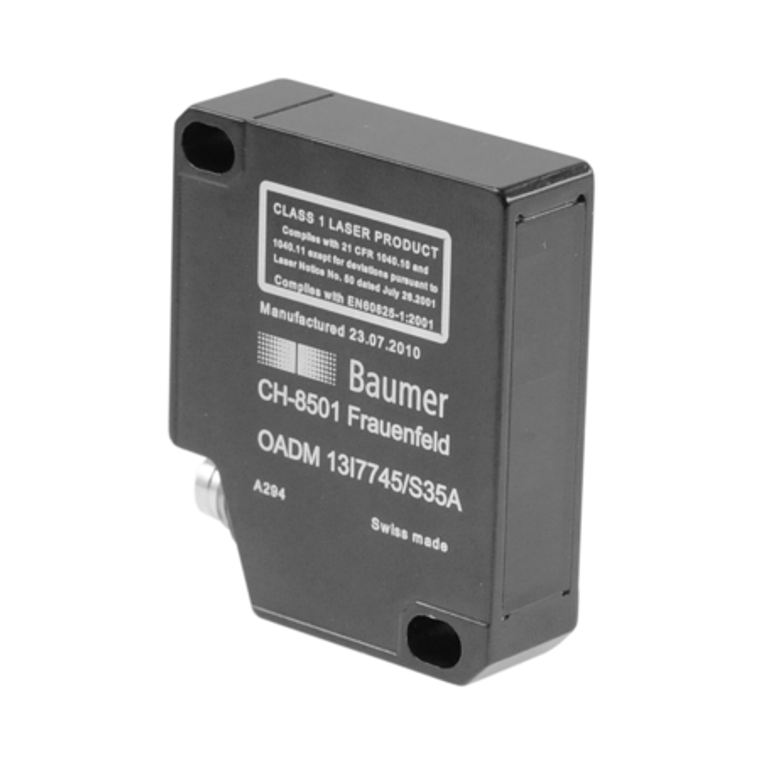

The Baumer OADM 13U7745/S35A 11017091 is a high-precision optical distance sensor with a measuring range of 60 to 100 mm. It features Teach-in adjustment via a button or external input, with a minimum Teach-in range of 4 mm. The sensor is equipped with a green LED for power indication and a red LED to signal a soiled lens. It offers a resolution between 15 and 38 µm and a linearity error of ±0.047 to 0.118 mm. The device utilizes a pulsed red laser diode with a wavelength of 650 nm and is classified as a safe Laser class 1. It has a fast response and release time of less than 2 ms, operates on a voltage supply range of 12 to 28 VDC, and consumes a maximum of 80 mA with no load. The output is analog, providing a signal from 0 to 10 VDC, and it supports a load resistance of over 100 kOhm. Safety features include short circuit and reverse polarity protection. The sensor's compact design measures 13.4 mm in width, 48.2 mm in height, and 40 mm in depth, with a durable aluminum housing and glass optics. It connects via an M8 4-pin connector and is designed to withstand ambient light up to 100 kLux. The sensor is IP 67 rated for water and dust resistance and operates effectively in temperatures ranging from 0 to +50 °C.
- Measuring distance Sd:
- 60 100 mm
- Adjustment:
- Teach-in: button / external
- Teach-in range min.:
- > 4 mm
- Power on indication:
- LED green
- Soiled lens indicator:
- LED red
- Resolution:
- 15 38 µm
- Linearity error:
- ± 0.047 0.118 mm
- Beam type:
- Line
- Interference suppression:
- < 30 ms
- Object reflectivity:
- > 0.8 %
- Temperature drift:
- < 0,07 % Sde/KLight source=Pulsed red laser diode
- Wave length:
- 650 nm
- Laser class:
- 1
- Response time / release time:
- < 2 ms
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 80 mA
- Output circuit:
- Analog
- Output signal:
- 0 ... 10 VDC
- Load resistance:
- > 100 kOhm
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 13.4 mm
- Height / length:
- 48.2 mm
- Depth:
- 40 mm
- Design:
- Rectangular
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M8 4 pin
- Ambient light immunity:
- < 100 kLux
- Protection class:
- IP 67
- Operating temperature:
- 0 +50 °C
