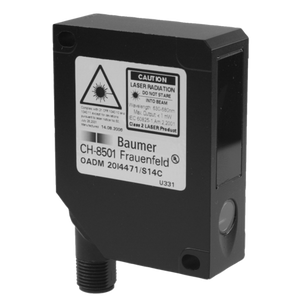

The Baumer OADM 20I5471/S14C 11164054 is a high-precision optical distance sensor with a measuring range of 100 to 500 mm and a resolution between 200 to 500 µm. It features a small beam diameter of 2 mm and utilizes a pulsed red laser diode with a wavelength of 650 nm. This sensor offers a fast response and release time of less than 10 ms and operates within a voltage supply range of 12 to 28 VDC. Key features include a green LED for power indication, a red LED for soiled lens alert, and an analog output signal of 4 to 20 mA. It is equipped with short circuit and reverse polarity protection, ensuring durability and reliability in various applications. The sensor's robust die-cast zinc housing, glass optics, and IP67 protection class make it suitable for harsh environments, with an operating temperature range of 0 to +50 °C. The device connects via a rotatable M12 5-pin connector, enhancing installation flexibility.
- Measuring distance Sd:
- 100 500 mm
- Beam diameter:
- 2 mm
- Adjustment:
- No
- Power on indication:
- LED green
- Soiled lens indicator:
- LED red
- Resolution:
- 200 500 µm
- Linearity error:
- ± 0.8 2 mm
- Beam type:
- Point
- Temperature drift:
- < 0,04 % Sde/KLight source=Pulsed red laser diode
- Wave length:
- 650 nm
- Response time / release time:
- < 10 ms
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 100 mA
- Output circuit:
- Analog
- Output signal:
- 4 ... 20 mA
- Load resistance (analog I):
- < (+Vs - 6 V) / 0,02 A
- Alarm output:
- PNP
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 20.6 mm
- Height / length:
- 65 mm
- Depth:
- 50 mm
- Design:
- Rectangular
- Housing material:
- Die-cast zinc
- Front (optics):
- Glass
- Connection types:
- Connector M12 5 pin, rotatable
- Protection class:
- IP 67
- Operating temperature:
- 0 +50 °C
