Baumer OADM 20I6460/S14F 10144599
Baumer
$2,374.00

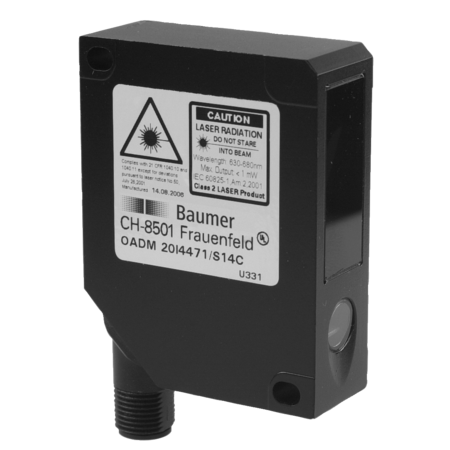

The Baumer OADM 20I6460/S14F 10144599 is a high-precision optical distance sensor with a measuring range of 30 to 130 mm and a beam diameter of 2 to 1 mm. It features Teach-in adjustment via a button or external control, with a minimum Teach-in range of 3 mm. The sensor includes a green LED for power indication and a red LED to signal a soiled lens. It offers a resolution between 5 and 60 µm and a linearity error of ±0.015 to 0.2 mm. The sensor uses a pulsed red laser diode with a wavelength of 650 nm and is classified as Laser class 2. It has a fast response and release time of less than 0.9 ms. The voltage supply range is 12 to 28 VDC, with a maximum current consumption of 100 mA when no load is present. Output options include analog signals of 4 to 20 mA or 0 to 10 VDC, and it supports a load resistance for analog current and voltage outputs. Additional features include PNP alarm output, short circuit and reverse polarity protection. The sensor's compact design measures 20.6 mm in width, 65 mm in height, and 50 mm in depth, with a die-cast zinc housing and glass optics front. It includes an M12 8-pin rotatable connector, offers ambient light immunity up to 40 kLux, and is rated IP 67 for protection against dust and water ingress. The operating temperature range is from 0 to +50 °C.
- Measuring distance Sd:
- 30 130 mm
- Beam diameter:
- 2 1 mm
- Adjustment:
- Teach-in: button / external
- Teach-in range min.:
- > 3 mm
- Power on indication:
- LED green
- Soiled lens indicator:
- LED red
- Resolution:
- 5 60 µm
- Linearity error:
- ± 0.015 0.2 mm
- Beam type:
- Point
- Temperature drift:
- < 0,03 % Sde/KLight source=Pulsed red laser diode
- Wave length:
- 650 nm
- Laser class:
- 2
- Response time / release time:
- < 0.9 ms
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 100 mA
- Output circuit:
- Analog
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Load resistance (analog I):
- < (+Vs - 6 V) / 0,02 A
- Load resistance (analog U):
- > 100 kOhm
- Output current:
- 100 mA
- Alarm output:
- PNP
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 20.6 mm
- Height / length:
- 65 mm
- Depth:
- 50 mm
- Design:
- Rectangular
- Housing material:
- Die-cast zinc
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin, rotatable
- Ambient light immunity:
- < 40 kLux
- Protection class:
- IP 67
- Operating temperature:
- 0 +50 °C
- Datasheet:
- View
