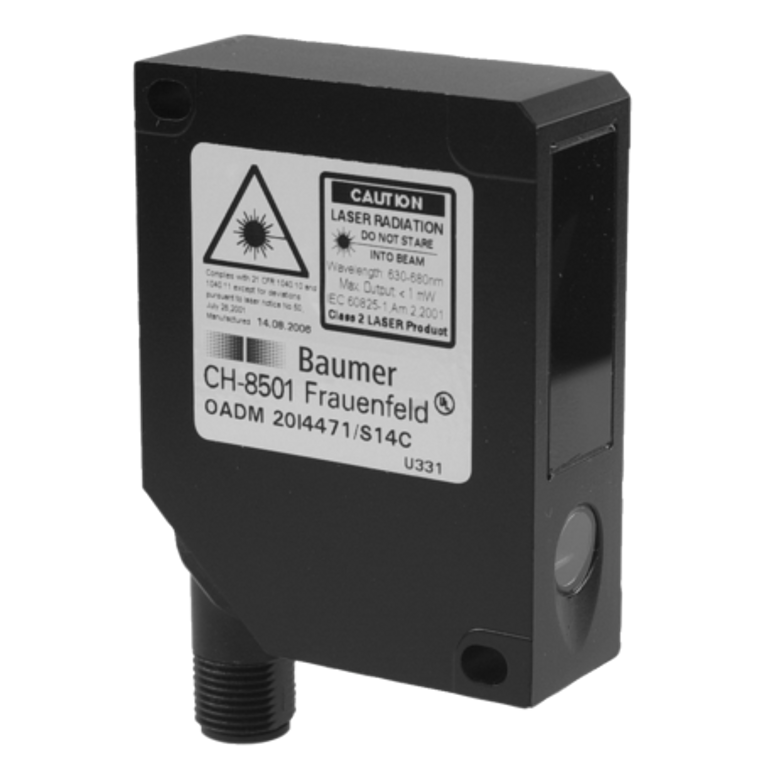

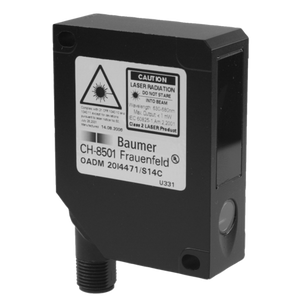

The Baumer OADM 20I6481/S14F 10144602 is a high-precision optical distance sensor designed for industrial applications, offering a measuring range of 200 to 1000 mm with a fine resolution between 120 to 2500 µm. It features a small beam diameter of 2 mm and utilizes a pulsed red laser diode with a wavelength of 650 nm, falling under Laser class 2. The sensor is equipped with both analog and PNP alarm outputs, supporting 4 ... 20 mA / 0 ... 10 VDC signals, and includes short circuit and reverse polarity protection. It operates efficiently within a voltage supply range of 12 to 28 VDC and has a quick response time of less than 0.9 ms. The robust die-cast zinc housing, combined with glass optics, ensures durability and reliability in harsh environments, certified with an IP 67 protection class. Additional features include LED indicators for power status and lens contamination, and a teach-in button for easy setup. The sensor's compact dimensions (20.6 mm width, 65 mm height, 50 mm depth) and its M12 8-pin rotatable connector facilitate easy installation and integration into various systems.
- Measuring distance Sd:
- 200 1000 mm
- Beam diameter:
- 2 mm
- Adjustment:
- Teach-in: button / external
- Teach-in range min.:
- > 20 mm
- Power on indication:
- LED green
- Soiled lens indicator:
- LED red
- Resolution:
- 120 2500 µm
- Linearity error:
- ± 0.48 10 mm
- Beam type:
- Point
- Temperature drift:
- < 0,06 % Sde/KLight source=Pulsed red laser diode
- Wave length:
- 650 nm
- Laser class:
- 2
- Response time / release time:
- < 0.9 ms
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 100 mA
- Output circuit:
- Analog
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Load resistance (analog I):
- < (+Vs - 6 V) / 0,02 A
- Load resistance (analog U):
- > 100 kOhm
- Output current:
- 100 mA
- Alarm output:
- PNP
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 20.6 mm
- Height / length:
- 65 mm
- Depth:
- 50 mm
- Design:
- Rectangular
- Housing material:
- Die-cast zinc
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin, rotatable
- Ambient light immunity:
- < 5 kLux
- Protection class:
- IP 67
- Operating temperature:
- 0 +50 °C
