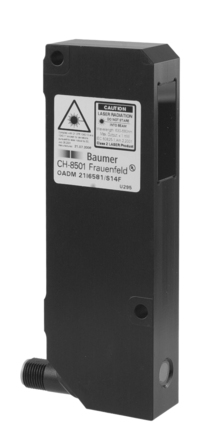

Baumer OADM 21I6580/S14F 10166224
Baumer
The Baumer OADM 21I6580/S14F 10166224 is a high-precision optical distance sensor with a measuring range of 100 to 600 mm. It features Teach-in adjustment via a button or external input, with a minimum Teach-in range of 10 mm. The device includes a green LED for power indication and a red LED to signal a soiled lens. It offers a resolution between 10 and 250 µm and a linearity error of ±0.07 to 1 mm. The sensor emits a line beam with a width of 2 mm and a height varying from 4 to 13 mm. It operates with a pulsed red laser diode light source at a wavelength of 650 nm and is classified as a Laser class 2 device. The response and release time is less than 4 ms, ensuring quick readings. The sensor is powered by a 12 to 28 VDC supply, with a maximum current consumption of 100 mA when unloaded. It provides both analog output signals (4 to 20 mA or 0 to 10 VDC) and includes a PNP alarm output. Safety features include short circuit and reverse polarity protection. The sensor's robust design includes an aluminum housing, glass optics, and an M12 8-pin rotatable connector. It is IP 67 rated for dust and water resistance, operates in temperatures from 0 to +50 °C, and is immune to ambient light up to 10 kLux.
- Scanning range Sd:
- 100 1000 mm
- Scanning range close limit Sdc:
- 100 1000 mm
- Scanning range far limit Sde:
- 100 1000 mm
- Version:
- Standard
- Repeat accuracy:
- 0.5 mm
- Resolution:
- < 0.3 mm
- Response time ton:
- < 80 ms
- Release time toff:
- < 80 ms
- Temperature drift:
- < 2 % Sde
- Sonic frequency:
- 240 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Light indicator:
- Yellow LED / red LED
- Voltage supply range +Vs:
- 15 30 VDC
- Current consumption max. (no load):
- 55 mA
- Output circuit:
- Current output
- Output signal:
- 4 ... 20 mA / 20 ... 4 mA
- Output current:
- 20 mA
- Load resistance +Vs max.:
- < 1100 Ohm
- Load resistance +Vs min.:
- < 400 Ohm
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Width / diameter:
- 30 mm
- Height / length:
- 70 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
