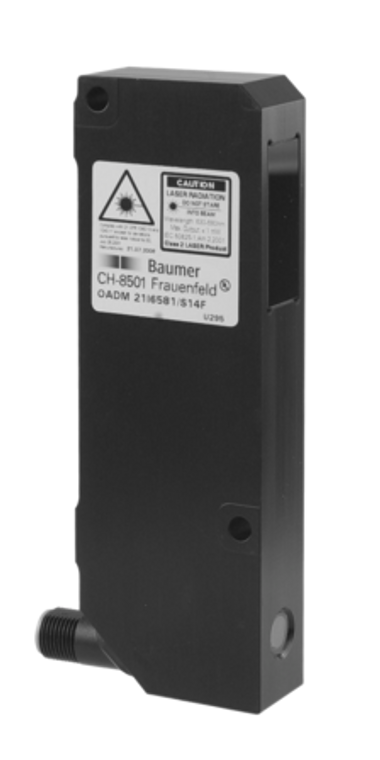

The Baumer OADM 21I6581/S14F 11003833 is a high-precision optical distance sensor with a measuring range of 200 to 1000 mm. It features Teach-in adjustment via a button or external control, with a minimum Teach-in range of 10 mm. The sensor provides visual feedback through a green LED for power indication and a red LED for soiled lens alert. It offers a resolution between 20 and 400 µm and a linearity error of ±0.11 to 1.65 mm. The sensor emits a line beam with a width of 2.5 mm and a height ranging from 6 to 20 mm. It operates with a pulsed red laser diode light source at a wavelength of 650 nm and is classified as a Laser class 2 device. The response and release time is less than 4 ms, ensuring quick reactions to changes in the measured distance. This sensor is powered by a 12 to 28 VDC supply, with a maximum current consumption of 100 mA when unloaded. It features an analog output circuit providing signals from 4 to 20 mA or 0 to 10 VDC, suitable for various industrial applications. The load resistance for analog current is less than ((+Vs - 6 V) / 0.02 A), and for analog voltage, it is greater than 100 kOhm. Additionally, it includes a 100 mA output current, PNP alarm output, and is equipped with short circuit and reverse polarity protection. The device has a compact rectangular design, measuring 20.4 mm in width, 135 mm in height, and 45 mm in depth, with a durable aluminum housing and glass optics front. It connects via an M12 8-pin rotatable connector, ensuring flexible installation options. The sensor is highly resistant to ambient light, up to 10 kLux, and is rated IP 67 for protection against dust and water ingress, making it suitable for harsh environments. It operates effectively within a temperature range of 0 to +50 °C. For more detailed specifications, refer to the provided datasheet link.
- Measuring distance Sd:
- 200 1000 mm
- Adjustment:
- Teach-in: button / external
- Teach-in range min.:
- > 10 mm
- Power on indication:
- LED green
- Soiled lens indicator:
- LED red
- Resolution:
- 20 400 µm
- Linearity error:
- ± 0.11 1.65 mm
- Beam type:
- Line
- Beam width:
- 2.5 mm
- Beam height:
- 6 20 mm
- Temperature drift:
- < 0,02 % Sde/KLight source=Pulsed red laser diode
- Wave length:
- 650 nm
- Laser class:
- 2
- Response time / release time:
- < 4 ms
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 100 mA
- Output circuit:
- Analog
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Load resistance (analog I):
- < (+Vs - 6 V) / 0,02 A
- Load resistance (analog U):
- > 100 kOhm
- Output current:
- 100 mA
- Alarm output:
- PNP
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 20.4 mm
- Height / length:
- 135 mm
- Depth:
- 45 mm
- Design:
- Rectangular
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin, rotatable
- Ambient light immunity:
- < 10 kLux
- Protection class:
- IP 67
- Operating temperature:
- 0 +50 °C
