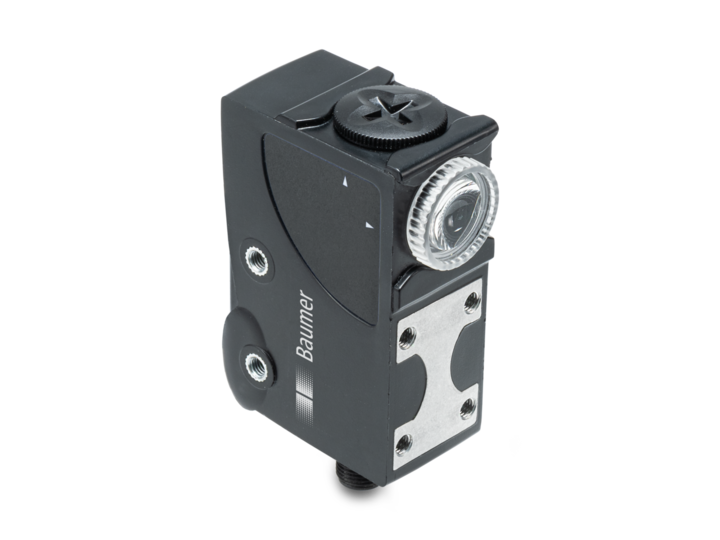

Baumer OC50.CC-QL1T.72O
Baumer
$381.90
Baumer OC50.CC-QL1T.72O is a diffuse contrast sensor with a sensing distance of 9 mm ±3 mm. It features a vertical line beam with a height of 1.5 mm and a width of 5 mm, utilizing a tri-color LED light source (red, green, blue) with wavelengths of 465 nm, 520 nm, and 630 nm. The sensor has a fast response and release time of less than 0.033 ms and jitter under 0.025 ms. It operates on a voltage supply range of 10 VDC to 30 VDC and has a typical current consumption of 50 mA at 24 VDC. The output functions include light/dark operate with both PNP and NPN output circuits, supporting an output current of 100 mA. It includes safety features such as short circuit and reverse polarity protection. The sensor's housing is made of ABS plastic with a PMMA front, and it connects via an M12 4-pin connector. It is designed to be durable with an IP67 protection class and can operate between -10 and +55 °C, with a storage temperature range of -20 to +70 °C.
- Type:
- Diffuse contrast sensor
- Sensing distance Tw:
- 9 mm ±3 mm
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Sensitivity adjustment:
- Teach-in
- Distance to focus:
- 9 mm
- Beam type:
- Line, vertical
- Beam height:
- 1.5 mm
- Beam width:
- 5 mmLight source=LED red / green / blue
- Wave length:
- 465 nm 520 nm 630 nm
- Response time / release time:
- < 0.033 ms
- Jitter:
- < 0.025 ms
- Voltage supply range +Vs:
- 10 VDC 30 VDC
- Current consumption typ.:
- 50 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP NPN
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 31 mm
- Height / length:
- 53 mm
- Depth:
- 80.1 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ABS)
- Front (optics):
- PMMA
- Connection types:
- Connector M12 4 pin
- Protection class:
- IP 67
- Operating temperature:
- -10 +55 °C
- Storage temperature:
- -20 +70 °C
