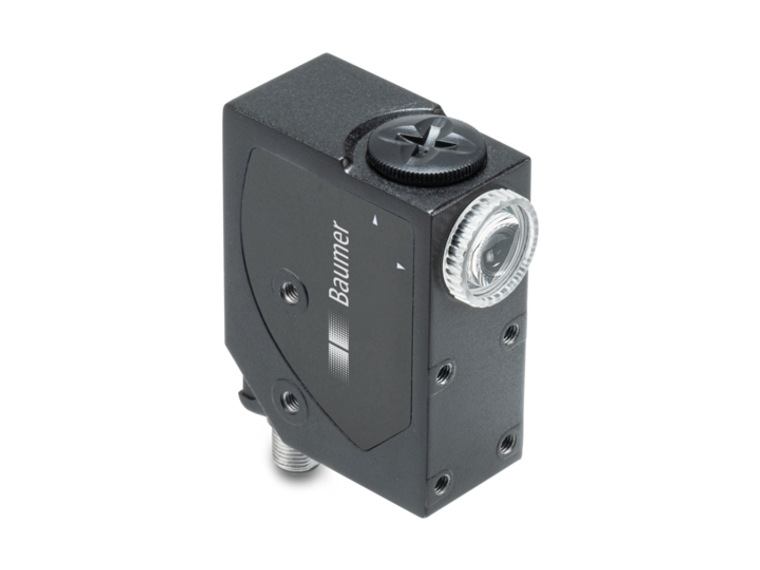

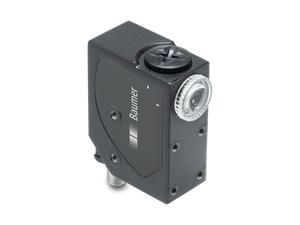

The Baumer OC60.CC-DLMT.7AF is a diffuse contrast sensor with a sensing distance of 9 mm ±3 mm and features a vertical line beam with a height of 1.5 mm and width of 5 mm. It utilizes a tri-color LED light source (red, green, blue) with wavelengths of 465 nm, 520 nm, and 630 nm. The sensor offers a rapid response and release time of less than 0.033 ms and jitter under 0.025 ms. It operates on a voltage supply range of 10 VDC to 30 VDC and has a typical current consumption of 50 mA at 24 VDC. The output functions include light/dark operate with a push-pull and analog output circuit ranging from 0 to 5 VDC. It features short circuit and reverse polarity protection, and is housed in a durable aluminum casing with PMMA front optics. The sensor is IP67 rated, making it suitable for harsh environments, and can operate between -10 and +55 °C. It connects via a rotatable M12 5-pin connector.
- Type:
- Diffuse contrast sensor
- Sensing distance Tw:
- 9 mm ±3 mm
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Sensitivity adjustment:
- Teach-in
- Distance to focus:
- 9 mm
- Beam type:
- Line, vertical
- Beam height:
- 1.5 mm
- Beam width:
- 5 mmLight source=LED red / green / blue
- Wave length:
- 465 nm 520 nm 630 nm
- Response time / release time:
- < 0.033 ms
- Jitter:
- < 0.025 ms
- Voltage supply range +Vs:
- 10 VDC 30 VDC
- Current consumption typ.:
- 50 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull Analog 0 ... 5 VDC, 2,2 V on white target 90% ± 10%
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 31.9 mm
- Height / length:
- 60.2 mm
- Depth:
- 79 mm
- Design:
- Rectangular
- Housing material:
- Aluminum
- Front (optics):
- PMMA
- Connection types:
- Connector M12 5 pin, rotatable
- Protection class:
- IP 67
- Operating temperature:
- -10 +55 °C
- Storage temperature:
- -20 +70 °C
