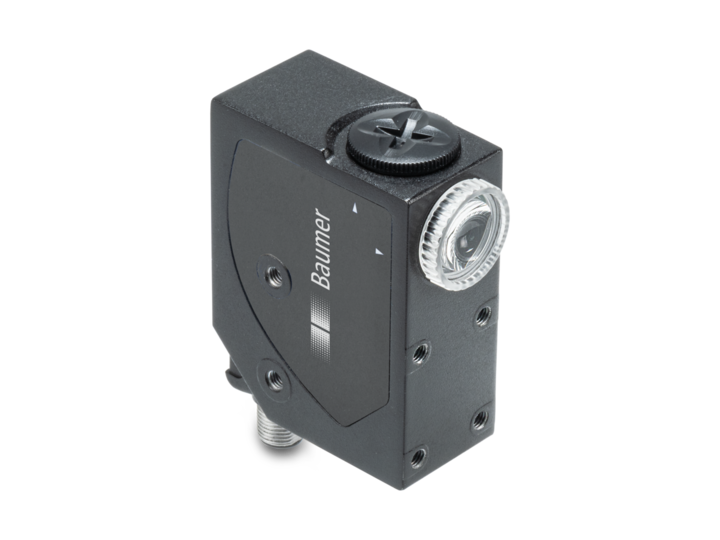

The Baumer OC60.CC-DLMT.7AF/E030 is a diffuse contrast sensor featuring a sensing distance of 9 mm ±3 mm and equipped with multi-color LED technology (red, green, blue) for optimal object detection. It includes a horizontal line beam with a height of 1.5 mm and a width of 5 mm. The sensor offers a quick response and release time of less than 0.033 ms and jitter under 0.025 ms, ensuring high precision. It operates within a voltage supply range of 10 VDC to 30 VDC and has a typical current consumption of 50 mA at 24 VDC. The output functions include light/dark operate and an analog output ranging from 0 to 5 VDC. It features both short circuit and reverse polarity protection, enhancing its durability and reliability. The sensor's robust aluminum housing and PMMA front optics are designed to withstand harsh environments with an IP 67 protection rating. It operates effectively in temperatures ranging from -10 to +55 °C. The sensor's dimensions are 31.9 mm in width, 60.2 mm in height, and 79 mm in depth, and it connects via a rotatable M12 5-pin connector.
- Type:
- Diffuse contrast sensor
- Sensing distance Tw:
- 9 mm ±3 mm
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Sensitivity adjustment:
- Teach-in
- Distance to focus:
- 9 mm
- Beam type:
- Line, horizontal
- Beam height:
- 1.5 mm
- Beam width:
- 5 mmLight source=LED red / green / blue
- Wave length:
- 465 nm 520 nm 630 nm
- Response time / release time:
- < 0.033 ms
- Jitter:
- < 0.025 ms
- Voltage supply range +Vs:
- 10 VDC 30 VDC
- Current consumption typ.:
- 50 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull Analog 0 ... 5 VDC, 2,2 V on white target 90% ± 10%
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 31.9 mm
- Height / length:
- 60.2 mm
- Depth:
- 79 mm
- Design:
- Rectangular
- Housing material:
- Aluminum
- Front (optics):
- PMMA
- Connection types:
- Connector M12 5 pin, rotatable
- Protection class:
- IP 67
- Operating temperature:
- -10 +55 °C
- Storage temperature:
- -20 +70 °C
