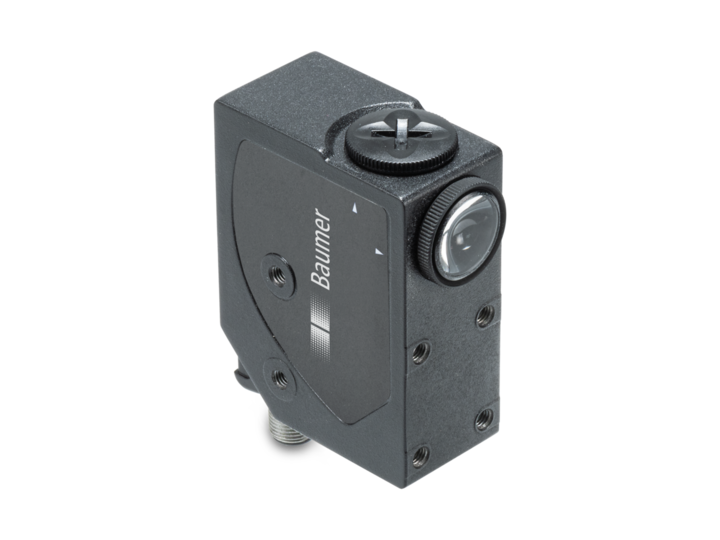

Baumer OC60.CU-DLMT.7AF
Baumer
$1,889.00
The Baumer OC60.CU-DLMT.7AF is a luminescence sensor featuring a UV LED light source with a wavelength of 375 nm and a vertical line beam. It offers a sensing distance of 10 mm to 20 mm and includes a green LED for power indication and a yellow LED for output status. The sensor is equipped with teach-in sensitivity adjustment and has a response time of less than 0.25 ms. It operates on a voltage supply range of 15 VDC to 30 VDC and has a typical current consumption of 50 mA at 24 VDC. The output functions include light operate and it supports PNP, NPN, and analog output circuits ranging from 0.75 to 5.5 VDC. The sensor is designed with a robust aluminum housing and glass optics, measuring 31.9 mm in width, 60.2 mm in height, and 79 mm in depth. It features a connector M12 5-pin, rotatable connection type, and offers protection with IP 67 rating, short circuit protection, and reverse polarity protection. Suitable for operating temperatures from -10 to +55 °C and storage temperatures from -20 to +70 °C.
- Type:
- Luminescence sensor
- Sensing distance Tw:
- 10 mm 20 mm
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Sensitivity adjustment:
- Teach-in
- Distance to focus:
- 10 mm
- Beam type:
- Line, vertical
- Beam height:
- 8 mm
- Beam width:
- 2 mmLight source=UV LED
- Wave length:
- 375 nm
- Response time / release time:
- < 0.25 ms
- Voltage supply range +Vs:
- 15 VDC 30 VDC
- Current consumption typ.:
- 50 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light operate
- Output circuit:
- PNP NPN Analog 0,75 ... 5,5 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 31.9 mm
- Height / length:
- 60.2 mm
- Depth:
- 79 mm
- Design:
- Rectangular
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 5 pin, rotatable
- Protection class:
- IP 67
- Operating temperature:
- -10 +55 °C
- Storage temperature:
- -20 +70 °C
