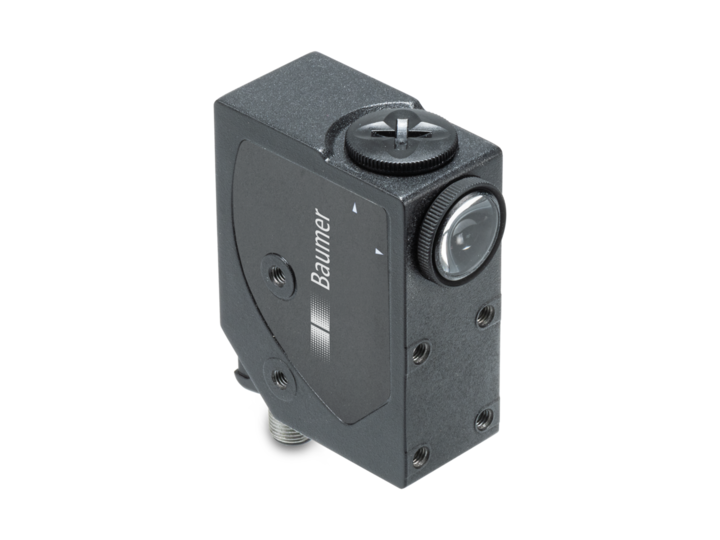

The Baumer OC60D.CC-NW1B.7AF is a diffuse contrast sensor equipped with a display and optional color mode. It features a sensing distance of 9 mm ±3 mm and utilizes a vertical line beam with a height of 1.5 mm and width of 5 mm. The sensor is powered by LEDs in red, green, and blue with wave lengths of 465 nm, 520 nm, and 630 nm respectively. It offers a rapid response time of less than 0.016 ms and a release time of less than 0.1 ms in color mode. The device is designed for high precision with a jitter of less than 0.016 ms and less than 0.05 ms in color mode. This sensor operates within a voltage supply range of 10 VDC to 30 VDC and has a typical current consumption of 35 mA at 24 VDC. It features both light and dark operating modes, an NPN output circuit, and supports an output current of 100 mA. Safety features include short circuit and reverse polarity protection. The sensor's robust design includes an aluminum housing, glass optics, and an IP67 protection class, making it suitable for challenging environments. It operates within a temperature range of -10 to +55 °C and can be stored from -20 to +70 °C. The Baumer OC60D.CC-NW1B.7AF is compact with dimensions of 31.9 mm in width, 60.2 mm in height, and 79 mm in depth, and it connects via a rotatable M12 5-pin connector. This makes it an ideal choice for applications requiring precise color differentiation and reliable performance in industrial settings.
- Type:
- Diffuse contrast sensor
- Version:
- Display Optional color mode
- Sensing distance Tw:
- 9 mm ±3 mm
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Sensitivity adjustment:
- Teach-in
- Distance to focus:
- 9 mm
- Beam type:
- Line, vertical
- Beam height:
- 1.5 mm
- Beam width:
- 5 mmLight source=LED red / green / blue
- Wave length:
- 465 nm 520 nm 630 nm
- Response time / release time:
- < 0.016 ms < 0.1 ms (Color Mode)
- Jitter:
- < 0.016 ms < 0.05 ms (Color Mode)
- Voltage supply range +Vs:
- 10 VDC 30 VDC
- Current consumption typ.:
- 35 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 31.9 mm
- Height / length:
- 60.2 mm
- Depth:
- 79 mm
- Design:
- Rectangular
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 5 pin, rotatable
- Protection class:
- IP 67
- Operating temperature:
- -10 +55 °C
- Storage temperature:
- -20 +70 °C
