Description

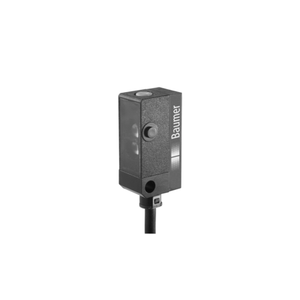

Baumer OEDK 14P5101 11001250 is a through beam laser sensor designed as a receiver with an actual range of 8 m and a nominal range of 10 m. It features a flashing light indicator for alignment or soiled lens detection, and a yellow LED light indicator. This model does not allow for sensitivity adjustment and boasts a quick response time of less than 0.5 ms. It operates on a voltage supply range of 10 to 30 VDC, with a typical current consumption of 20 mA and a voltage drop of less than 1.8 VDC. The output functions include light/dark operate with a PNP output circuit and a maximum output current of 100 mA. It includes safety features such as short circuit and reverse polarity protection. The sensor measures 14.8 mm in width, 43 mm in height, and 31 mm in depth, with a rectangular design and a housing made of plastic (ASA, MABS) and a PMMA front optics. It connects via a 4-pin, 2 m cable and operates within a temperature range of -25 to +65 °C. The sensor is rated IP 67 for protection against dust and immersion.
