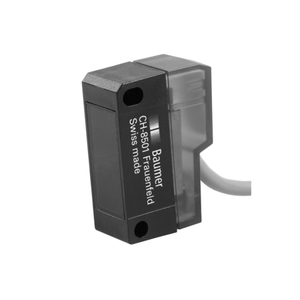

Baumer OEDK 14P5101/S14 11003291 is a through beam laser sensor designed as a receiver with an actual range of 8 m and a nominal range of 10 m. It features a flashing light indicator for alignment or soiled lens detection, and a yellow LED light indicator. This model does not allow for sensitivity adjustment and boasts a quick response time of less than 0.5 ms. It operates on a voltage supply range of 10 to 30 VDC, with a typical current consumption of 20 mA and a voltage drop of less than 1.8 VDC. The output functions include light and dark operate, with a PNP output circuit and a maximum output current of 100 mA. It includes safety features such as short circuit and reverse polarity protection. The sensor measures 14.8 mm in width, 43 mm in height, and 31 mm in depth, with a rectangular, plastic housing made of ASA and MABS, and a PMMA front optics. It connects via an M12 4-pin connector and operates within a temperature range of -25 to +65 °C. The sensor is IP 67 rated for protection against dust and water ingress.
- Type:
- Through beam laser sensor
- Emitter / receiver:
- Receiver
- Actual range Sb:
- 8 m
- Nominal range Sn:
- 10 m
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Sensitivity adjustment:
- No
- Response time / release time:
- < 0.5 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Current consumption typ.:
- 20 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 14.8 mm
- Height / length:
- 43 mm
- Depth:
- 31 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, MABS)
- Front (optics):
- PMMA
- Connection types:
- Connector M12 4 pin
- Operating temperature:
- -25 +65 °C
- Protection class:
- IP 67
