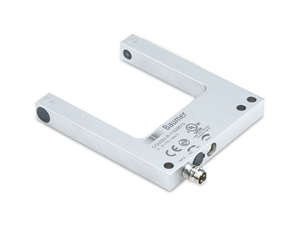

The Baumer OG030U.R-GW1O.7VL is a through beam sensor designed for precise object detection with a minimum size of 0.5 mm. It features a repeat accuracy of 0.02 mm and a rapid response time of less than 0.1 ms. The sensor is equipped with a potentiometer for sensitivity adjustment and uses a pulsed red LED light source with a wavelength of 660 nm. It offers multiple switching frequencies including 5000 Hz, 1500 Hz, 250 Hz, and 8000 Hz, and operates on a voltage supply range of 10 to 30 VDC. The output function can switch between light and dark operation, and it includes a push-pull / IO-Link output circuit. The sensor is built with a durable stainless steel housing, offers short circuit and reverse polarity protection, and operates within a temperature range of -25 to +60 °C. It is IP 67 rated, ensuring protection against dust and water ingress, making it suitable for a variety of industrial applications.
- Type:
- Through beam sensor
- Object size:
- > 0.5 mm
- Repeat accuracy:
- 0.02 mm
- Response time / release time:
- < 0.1 ms
- Hysteresis:
- < 0.25 mm
- Sensitivity adjustment:
- Potentiometer, 270° IO-Link
- Light source:
- Pulsed red LED
- Wave length:
- 660 nm
- Light indicator:
- LED yellow
- Switching frequency:
- 5000 Hz , default 1500 Hz 250 Hz 8000 Hz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 30 mA
- Output function:
- Light / dark operate switchable
- Output circuit:
- Push-pull / IO-Link
- Voltage drop Vd:
- <2.8 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 50 mm
- Fork width Sb:
- 30 mm
- Height / length:
- 60 mm
- Penetration depth:
- 35 mm
- Depth:
- 10 mm
- Design:
- U profile
- Housing material:
- Stainless steel 1.4404 (V4A)
- Connection types:
- Connector M8, 3 pin
- Operating temperature:
- -25 +60 °C
- Protection class:
- IP 67
