Baumer OG120U.L-GW1O.7WL

Baumer OG120U.L-GW1O.7WL

Baumer
SKU:
11229524
Availability:
Contact us to confirm availability and lead times.
$709.00
Condition:
New
Current Stock:
Description

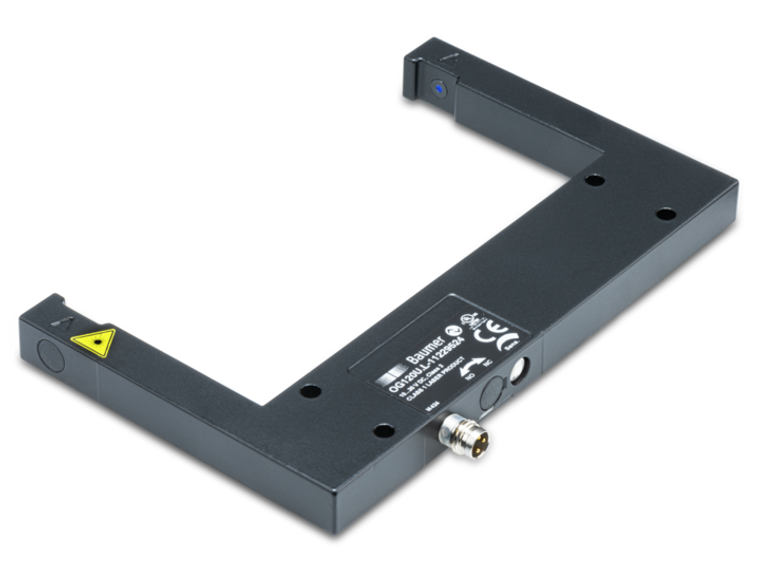

The Baumer OG120U.L-GW1O.7WL is a through beam sensor equipped with a pulsed red laser diode, featuring a wavelength of 670 nm and classified as laser class 1. It is designed to detect objects as small as 0.2 mm with a repeat accuracy of 0.01 mm and a rapid response time of less than 0.1 ms. The sensor offers adjustable sensitivity via a 270° potentiometer and supports multiple switching frequencies up to 10,000 Hz. It operates on a voltage supply range of 10 to 30 VDC and includes a push-pull / IO-Link output circuit. The unit is housed in a robust die-cast zinc U-profile design, measuring 144 mm in width, 120 mm in fork width, and 90 mm in height. It features short circuit and reverse polarity protection, an LED light indicator for operational status, and is suitable for temperatures ranging from -25 to +60 °C. The sensor is IP 67 rated, ensuring protection against dust and water ingress, and connects via an M8, 3-pin connector.
Additional Information
Type:
Through beam sensor
Object size:
> 0.2 mm
Repeat accuracy:
0.01 mm
Response time / release time:
< 0.1 ms
Hysteresis:
< 0.05 mm
Sensitivity adjustment:
Potentiometer, 270° IO-Link
Light source:
Pulsed red laser diode
Wave length:
670 nm
Laser class:
1
Light indicator:
LED yellow
Switching frequency:
5000 Hz , default 2000 Hz 1000 Hz 10000 Hz
Voltage supply range +Vs:
10 … 30 VDC
Current consumption max. (no load):
30 mA
Output function:
Light / dark operate switchable
Output circuit:
Push-pull / IO-Link
Voltage drop Vd:
<2.8 VDC
Output current:
200 mA
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Width / diameter:
144 mm
Fork width Sb:
120 mm
Height / length:
90 mm
Penetration depth:
60 mm
Depth:
12 mm
Design:
U profile
Housing material:
Die-cast zinc
Connection types:
Connector M8, 3 pin
Operating temperature:
-25 … +60 °C
Protection class:
IP 67
